Engines · R series

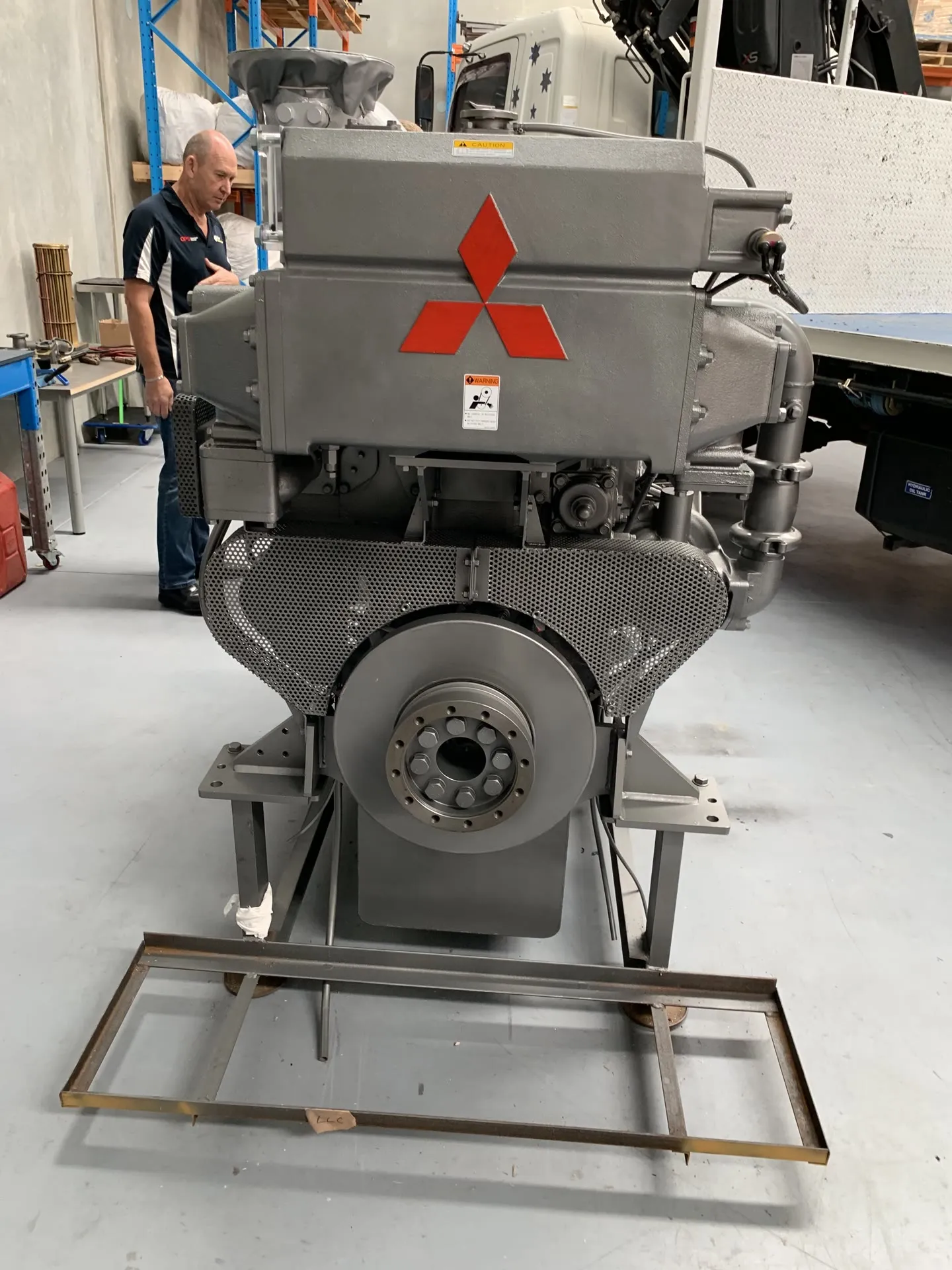

S6R2 Inline-6
Propulsion / Diesel-Electric / Genset
- Applications
- Propulsion / Diesel-Electric Propulsion / Auxiliary Genset
- Output
- 324–759 kW
- Output
- 435–1018 bhp
- Displacement
- 29.96 L
- Cylinders
- 6
- Configuration
- Inline-6
- Bore × stroke
- 170 × 220 mm
- Dry weight
- 3,030 kg
- Dimensions (L×W×H)
- 2023 × 1160 × 1694 mm
- EIAPP
- IMO I & II Compliant
- Class approvals
- NK, LR, BV, ABS, DNV, BKI, VR
Larger-displacement companion to the S6R, covering propulsion, diesel-electric propulsion and auxiliary genset duty at higher output for the same six-cylinder architecture.
Full ratings by duty
Rating codes
- UCDUnrestricted Continuous Duty
- Full-load operation allowed unlimited, unlimited hours per year. Cargo vessels and fishing boats.
- HDHeavy Duty
- Up to 83% load, full load for 8 hrs per 24 hrs, under 6,000 hrs/year. Working, fishing, tug and ferry boats, passenger vessels.
- MDMedium Duty
- Up to 75% load, full load for 1 hr per 6 hrs, under 4,000 hrs/year. Pleasure and patrol boats, high-performance vessels.
Parts for the S6R2
Genuine MHI parts stocked in Wangara WA, with a regional supply hub in Singapore.
Parts catalogue — S6R2-T2MTK3M
1,733 parts across 102 assembly groups, extracted from MHI's own parts catalogue (Pub. No. 282T0-02600_00). Grouped and ordered to match the catalogue's own table of contents.
Not sure which model your part belongs to? Search all five catalogues at once →
| Group | Ref | Part No. | Name | Qty |
|---|
No parts match that search.
Service kits
The kits most customers order routinely, pulled out from the full catalogue below.
P48A1-920PUMP ASSY(OVERHAUL KIT)27 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 2050 | 48202-59902 | GASKET KIT,OVERHAUL | 1 | Enquire → |
| 2050001 | 05507-10080 | O-RING | 2 | Enquire → |
| 2050002 | 05507-10360 | O-RING | 1 | Enquire → |
| 2050003 | 05507-10390 | O-RING | 1 | Enquire → |
| 2050004 | 05507-20250 | O-RING | 6 | Enquire → |
| 2050005 | 05507-20350 | O-RING | 1 | Enquire → |
| 2050006 | 05507-20800 | O-RING | 2 | Enquire → |
| 2050007 | 05946-00801 | WASHER,SEALING | 3 | Enquire → |
| 2050008 | 05946-01001 | WASHER,SEALING | 12 | Enquire → |
| 2050009 | 05946-01201 | WASHER,SEALING | 13 | Enquire → |
| 2050010 | 05946-01401 | WASHER,SEALING | 6 | Enquire → |
| 2050011 | 05946-02701 | WASHER,SEALING | 1 | Enquire → |
| 2050012 | 37564-05200 | NUT,TAMPER PROOF | 2 | Enquire → |
| 2050013 | 48202-05800 | WIRE | 1 | Enquire → |
| 2050014 | 48202-07100 | SEAL,OIL | 1 | Enquire → |
| 2050015 | 48202-07700 | SEAL | 1 | Enquire → |
| 2050016 | 48202-08201 | BAND,BELLOWS | 2 | Enquire → |
| 2050017 | 48202-08301 | BAND,BELLOWS | 2 | Enquire → |
| 2050018 | 48202-09200 | SLEEVE | 1 | Enquire → |
| 2050019 | 48202-12400 | O-RING | 18 | Enquire → |
| 2050020 | 48202-14100 | SHIM,CASE, T=0.50 | 4 | Enquire → |
| 2050021 | 48202-23500 | BELLOWS, WITH BAND | 2 | Enquire → |
| 2050022 | * | SHIM SET,BARREL | 1 | Enquire → |
| 2050023 | F1035-08045 | BOLT | 2 | Enquire → |
| 2050024 | F3019-02531 | SEAL,OIL, NOT SHOWN | 1 | Enquire → |
| 2050025 | 48202-13501 | BELLOWS, WITHOUT BAND | 2 | Enquire → |
| 3000 | 48202-09200 | SLEEVE | 1 | Enquire → |
P375B-940-02OVERHAUL GASKET KIT (MARINE USE)3 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0010 | 37594-43150 | GASKET KIT,OVERHAUL, MARINE ENGINE | 1 | Enquire → |
| 0100 | 37594-43220 | GASKET KIT,OVERHUAL, COMMON USE | 1 | Enquire → |
| 0300 | 37594-58131 | GASKET KIT,OVERHUAL, MARINE ADD. PARTS | 1 | Enquire → |
P375B-940-03OIL SEAL KIT11 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0090 | 37594-42230 | SEAL KIT,OIL | 1 | Enquire → |
| 0090001 | 37511-04300 | SEAL,OIL | 2 | Enquire → |
| 0090002 | 37539-00600 | SEAL,THERMOSTAT | 1 | Enquire → |
| 0090003 | 37545-20600 | SEAL UNIT,MECHANICAL | 1 | Enquire → |
| 0090004 | F3003-01831 | SEAL,OIL | 1 | Enquire → |
| 0090005 | 37525-13400 | SEAL,OIL, WITH DUST LIP | 1 | Enquire → |
| 0090006 | 37545-01300 | SEAL,OIL | 1 | Enquire → |
| 0090007 | 37545-01400 | SEAL,OIL | 1 | Enquire → |
| 0090008 | 37546-00800 | SEAL,THERMOSTAT | 2 | Enquire → |
| 0090009 | 45153-43015 | SEAL,WATER | 1 | Enquire → |
| 0090010 | 45153-43018 | SEAL,OIL | 1 | Enquire → |
P375B-940-04REPAIR KIT(WATER PUMP)12 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0120 | 37594-11020 | REPAIR KIT,WATER PUMP | 1 | Enquire → |
| 0120001 | 37545-01300 | SEAL,OIL | 1 | Enquire → |
| 0120002 | 37545-01400 | SEAL,OIL | 1 | Enquire → |
| 0120003 | 37545-30600 | SEAL UNIT | 1 | Enquire → |
| 0120004 | 37545-20800 | SPACER | 1 | Enquire → |
| 0120005 | F3153-17000 | O-RING | 1 | Enquire → |
| 0120006 | F3156-04000 | O-RING | 1 | Enquire → |
| 0120007 | F8008-06208 | BEARING,BALL | 1 | Enquire → |
| 0120008 | F8012-06308 | BEARING,BALL | 1 | Enquire → |
| 0120009 | F3153-09500 | O-RING | 1 | Enquire → |
| 0120010 | 05507-10150 | O-RING | 1 | Enquire → |
| 0120011 | 05507-20250 | O-RING | 1 | Enquire → |
Full parts list, by assembly group
P375B-010CYLINDER HEAD20 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0810 | * | HEAD SUB ASSY,CYLINDER | 6 | Enquire → |
| 0810001 | * | HEAD,CYLINDER | 6 | Enquire → |
| 0810002 | * | SEAT,EXHAUST, SEMIFINISHED | 12 | Enquire → |
| 0810003 | * | SEAT,INLET, SEMIFINISHED | 12 | Enquire → |
| 0810004 | * | GUIDE,VALVE, SEMIFINISHED | 24 | Enquire → |
| 0810005 | 04826-22800 | CAP,SEALING | 42 | Enquire → |
| 0810006 | 04826-22500 | CAP,SEALING | 6 | Enquire → |
| 0810007 | 04827-71000 | PLUG,TAPERED | 6 | Enquire → |
| 0820 | 37501-42050 | HEAD ASSY,CYLINDER | 6 | Enquire → |
| 0900 | 33501-13400 | GUIDE,BRIDGE ARM | 12 | Enquire → |
| 1100 | 37501-11401 | STUD,NOZZLE GLAND | 6 | Enquire → |
| 1150 | 37501-01501 | PIN,DOWEL | 6 | Enquire → |
| 1200 | 37501-12200 | GASKET,CYLINDER | 6 | Enquire → |
| 1300 | 37501-12501 | BOLT,CYLINDER HEAD | 36 | Enquire → |
| 1350 | 33707-11701 | WASHER | 36 | Enquire → |
| 2000 | 37101-10600 | GUIDE,VALVE, FINISHED | 24 | Enquire → |
| 2300 | 37501-27900 | SEAT,INLET, FINISHED | 12 | Enquire → |
| 2310 | 37501-27930 | SEAT,INLET, O.S. 0.03 | AR | Enquire → |
| 2320 | 37501-27960 | SEAT,INLET, O.S. 0.06 | AR | Enquire → |
| 2400 | 37501-06900 | SEAT,EXHAUST, FINISHED | 12 | Enquire → |
P375B-040VALVE MECHANISM42 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 37504-03801 | VALVE,INLET | 12 | Enquire → |
| 0305 | 37504-40200 | VALVE,EXHAUST | 12 | Enquire → |
| 0400 | 32504-00400 | COTTER | 48 | Enquire → |
| 0500 | 37504-00300 | ROTATOR,INLET VALVE | 12 | Enquire → |
| 0550 | 37504-11300 | ROTATOR,EXHAUST VALVE | 12 | Enquire → |
| 0600 | 37504-10400 | SPRING,INLET VALVE | 12 | Enquire → |
| 0650 | 37504-20500 | SPRING,EXHAUST VALVE, OUTER | 12 | Enquire → |
| 0670 | 37504-10600 | SPRING,EXHAUST VALVE, INNER | 12 | Enquire → |
| 0700 | 33504-10300 | SEAL,INLET VALVE STEM | 12 | Enquire → |
| 0750 | 37504-00900 | SEAL,EXHAUST VALVE STEM | 12 | Enquire → |
| 0780 | 37504-10802 | RETAINER,EXHAUST VALVE | 12 | Enquire → |
| 0800 | * | BRIDGE ASSY,EXHAUST | 6 | Enquire → |
| 0800001 | 37504-03400 | BRIDGE,EXHAUST | 6 | Enquire → |
| 0800002 | 37704-03300 | SCREW,ADJUSTING | 6 | Enquire → |
| 0800003 | F2305-10000 | NUT | 6 | Enquire → |
| 0900 | * | BRIDGE ASSY,INLET | 6 | Enquire → |
| 0900001 | 37504-03500 | BRIDGE,INLET | 6 | Enquire → |
| 0900002 | 37704-03300 | SCREW,ADJUSTING | 6 | Enquire → |
| 0900003 | F2305-10000 | NUT | 6 | Enquire → |
| 1200 | 30004-24302 | CAP | 12 | Enquire → |
| 1500 | * | ROCKER & SHAFT ASSY | 6 | Enquire → |
| 1500001 | 37504-05011 | ARM ASSY,ROCKER | 12 | Enquire → |
| 1500002 | * | ROCKER,ARM | 12 | Enquire → |
| 1500003 | 37504-05200 | BUSHING,ROCKER ARM | 12 | Enquire → |
| 1500004 | 37104-02800 | SCREW,ADJUSTING | 12 | Enquire → |
| 1500005 | F2305-12000 | NUT | 12 | Enquire → |
| 1500006 | 37504-05032 | SHAFT ASSY,ROCKER | 6 | Enquire → |
| 1500007 | * | SHAFT,ROCKER | 6 | Enquire → |
| 1500008 | 04826-21000 | CAP,SEALING | 6 | Enquire → |
| 1500009 | 37504-04300 | SPACER,ROCKER | 6 | Enquire → |
| 1800 | 37504-51102 | CASE,ROCKER | 6 | Enquire → |
| 1900 | 37504-41200 | PACKING,ROCKER CASE | 6 | Enquire → |
| 1950 | F2846-06000 | PIN,DOWEL | 6 | Enquire → |
| 2000 | MC802397 | BOLT,DIFF CASE | 30 | Enquire → |
| 2100 | 37504-02300 | O-RING | 6 | Enquire → |
| 2200 | 05507-10200 | O-RING | 6 | Enquire → |
| 2300 | 37501-01501 | PIN,DOWEL | 6 | Enquire → |
| 2700 | MH000854 | BOLT,FLANGE | 6 | Enquire → |
| 2800 | 37504-14600 | BOLT | 6 | Enquire → |
| 2900 | 37504-26102 | COVER,ROCKER | 6 | Enquire → |
| 3000 | 37504-66200 | O-RING,ROCKER COVER | 6 | Enquire → |
| 3100 | F1825-10065 | BOLT,W/WASHER, B/W | 16 | Enquire → |
P375B-050CAMSHAFT TAPPET7 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0120 | 37505-04301 | CAMSHAFT | 1 | Enquire → |
| 0200 | F2846-12000 | PIN,DOWEL | 2 | Enquire → |
| 0300 | 37525-29300 | BOLT | 6 | Enquire → |
| 0500 | 37505-10800 | PLATE,CAM THRUST | 1 | Enquire → |
| 0600 | F1805-12030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0700 | 37505-31100 | TAPPET | 12 | Enquire → |
| 1000 | 37505-05300 | ROD,PUSH | 12 | Enquire → |
P375B-070-01CYLINDER CRANKCASE(ASSY)27 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0350 | * | CRANKCASE SUB ASSY | 1 | Enquire → |
| 0350001 | * | CRANKCASE,CYLINDER | 1 | Enquire → |
| 0350002 | * | CAP,BEARING, NO.1-6 | 6 | Enquire → |
| 0350003 | * | CAP,BEARING, NO.7 | 1 | Enquire → |
| 0360 | 33707-11701 | WASHER | 28 | Enquire → |
| 0370 | 37507-31601 | BOLT,BEARING CAP | 28 | Enquire → |
| 0510 | 37507-45022 | CRANKCASE ASSY,CYLINDER | 1 | Enquire → |
| 0800 | 33007-02600 | PIN,DOWEL | 6 | Enquire → |
| 1100 | 37807-02600 | PIN,DOWEL | 12 | Enquire → |
| 1200 | 04827-72100 | PLUG,TAPERED | 1 | Enquire → |
| 1270 | 04827-71300 | PLUG,TAPERED | 3 | Enquire → |
| 1280 | 04826-22500 | CAP,SEALING | 1 | Enquire → |
| 1290 | 04827-71300 | PLUG,TAPERED | 1 | Enquire → |
| 1700 | 37507-23100 | BUSHING,CAM, FRONT | 1 | Enquire → |
| 1750 | 37707-03101 | BUSHING,CAM, REAR | 1 | Enquire → |
| 1800 | 37707-03201 | BUSHING,CAM | 5 | Enquire → |
| 1900 | 37507-03901 | BOLT,SET | 7 | Enquire → |
| 2000 | 05946-01201 | WASHER,SEALING | 7 | Enquire → |
| 2100 | 37507-04600 | PIN,DOWEL | 2 | Enquire → |
| 2600 | F2846-20000 | PIN,DOWEL | 2 | Enquire → |
| 2700 | 37507-00703 | PLATE,NOZZLE | 1 | Enquire → |
| 2800 | 05507-10340 | O-RING | 1 | Enquire → |
| 2900 | 04827-71300 | PLUG,TAPERED | 1 | Enquire → |
| 3000 | F2846-14000 | PIN,DOWEL | 2 | Enquire → |
| 3050 | 04826-24000 | CAP,SEALING | 1 | Enquire → |
| 3060 | 32625-00800 | CAP,SEALING | 1 | Enquire → |
| 3100 | F2846-12000 | PIN,DOWEL | 2 | Enquire → |
P375B-070-02CYLINDER CRANKCASE(LINER)7 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 1400 | 37507-75600 | LINNER,CYLINDER | 6 | Enquire → |
| 1440 | 37507-12500 | RING,LINER, T=0.10 | AR | Enquire → |
| 1442 | 37507-12510 | RING,LINER, T=0.05 | AR | Enquire → |
| 1444 | 37507-12520 | RING,LINER, T=0.15 | AR | Enquire → |
| 1450 | 37507-32400 | O-RING | 6 | Enquire → |
| 1500 | 37107-04201 | O-RING | 6 | Enquire → |
| 1600 | 37107-04300 | O-RING | 12 | Enquire → |
P375B-071CRANKCASE PARTS44 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37507-00800 | HANGER,FRONT | 1 | Enquire → |
| 0200 | F1035-12035 | BOLT | 3 | Enquire → |
| 0210 | F2515-12000 | WASHER,SPRING | 3 | Enquire → |
| 0250 | 37507-08400 | HANGER,REAR | 1 | Enquire → |
| 0300 | 37507-27101 | COVER,SIDE | 3 | Enquire → |
| 0350 | 37507-16901 | COVER,SIDE | 2 | Enquire → |
| 0400 | 37507-16401 | O-RING,SIDE COVER | 6 | Enquire → |
| 0500 | F1825-12030 | BOLT,W/WASHER, B/W | 16 | Enquire → |
| 0650 | 37507-37800 | COVER,CAM ROOM | 3 | Enquire → |
| 0680 | 37507-14801 | COVER,GOVERNOR, NO.6 CYLINDER | 1 | Enquire → |
| 0700 | 37507-16501 | O-RING,CAM ROOM | 4 | Enquire → |
| 0800 | 37507-16301 | COVER,CAM ROOM, NO.4 CYLINDER | 1 | Enquire → |
| 0850 | 37507-04900 | PACKING,CAM ROOM | 2 | Enquire → |
| 1050 | F1825-12030 | BOLT,W/WASHER, B/W | 17 | Enquire → |
| 1052 | F1035-12055 | BOLT | 1 | Enquire → |
| 1057 | F1035-12030 | BOLT | 6 | Enquire → |
| 1058 | F1035-12025 | BOLT | 2 | Enquire → |
| 1060 | F2515-12000 | WASHER,SPRING | 9 | Enquire → |
| 1150 | 37507-27201 | COVER,SIDE | 1 | Enquire → |
| 1170 | 37507-37500 | COVER,CAM ROOM | 1 | Enquire → |
| 1300 | 37507-15501 | NOZZLE,OIL JET | 6 | Enquire → |
| 1300001 | * | BODY | 6 | Enquire → |
| 1300002 | * | PIPE | 6 | Enquire → |
| 1300003 | F2846-06000 | PIN,DOWEL | 6 | Enquire → |
| 1500 | 36207-58901 | VALVE,CHECK | 6 | Enquire → |
| 1600 | 36207-08900 | SPRING,CONICAL DISK | 6 | Enquire → |
| 1700 | 33407-16100 | COCK,WATER DRAIN | 1 | Enquire → |
| 1710 | 05946-02001 | WASHER,SEALING | 1 | Enquire → |
| 1800 | 30007-05500 | CLAMP | 1 | Enquire → |
| 1850 | F4002-12065 | TUBE,SOFT VINYL | 1 | Enquire → |
| 2000 | 33546-06900 | COVER | 2 | Enquire → |
| 2100 | 35B36-02900 | GASKET,OIL | 2 | Enquire → |
| 2200 | F1805-12025 | BOLT,W/WASHER, B/W | 6 | Enquire → |
| 2300 | F5005-10001 | PLUG,TAPERED | 1 | Enquire → |
| 2350 | F5006-13000 | PLUG,TAPERED | 2 | Enquire → |
| 2450 | 37507-08800 | CONNECTOR | 2 | Enquire → |
| 3100 | 37707-09300 | COVER | 1 | Enquire → |
| 3110 | F5006-10000 | PLUG,TAPERED | 2 | Enquire → |
| 3200 | 37555-10600 | GASKET,AIR | 1 | Enquire → |
| 3300 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3500 | 04827-71000 | PLUG,TAPERED | 1 | Enquire → |
| 3600 | 32607-10700 | PLUG | 1 | Enquire → |
| 3700 | 05507-10340 | O-RING | 1 | Enquire → |
| 3800 | 04826-22000 | CAP,SEALING | 1 | Enquire → |
P375B-090MAIN BEARING11 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | * | BEARING,MAIN, UPPER | 7 | Enquire → |
| 0200 | * | BEARING,MAIN, LOWER | 7 | Enquire → |
| 0300 | 37509-38100 | BEARING,THRUST | 4 | Enquire → |
| 0710 | 37509-38200 | BEARING,THRUST, O.S. 0.25 | 4 | Enquire → |
| 0720 | 37509-38300 | BEARING,THRUST, O.S. 0.50 | 4 | Enquire → |
| 0730 | 37509-38400 | BEARING,THRUST, O.S. 0.75 | 4 | Enquire → |
| 0810 | 37509-50010 | BEARING SET,MAIN | 7 | Enquire → |
| 0820 | 37509-50020 | BEARING SET,MAIN, U.S. 0.25 | 7 | Enquire → |
| 0830 | 37509-50030 | BEARING SET,MAIN, U.S. 0.50 | 7 | Enquire → |
| 0840 | 37509-50040 | BEARING SET,MAIN, U.S. 0.75 | 7 | Enquire → |
| 0850 | 37509-50050 | BEARING SET,MAIN, U.S. 1.00 | 7 | Enquire → |
P375B-110TIMING GEAR CASE24 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37511-80100 | CASE,TIMING GEAR | 1 | Enquire → |
| 0350 | 36211-03100 | COVER | 1 | Enquire → |
| 0400 | F1805-12020 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 0500 | F2846-14000 | PIN,DOWEL | 4 | Enquire → |
| 0750 | 37511-35200 | PACKING | 1 | Enquire → |
| 0800 | 37511-60300 | PLATE,REAR | 1 | Enquire → |
| 0900 | 37511-30400 | PACKING | 1 | Enquire → |
| 1000 | 05978-16125 | BOLT | 9 | Enquire → |
| 1100 | F1035-16085 | BOLT | 1 | Enquire → |
| 1200 | F1035-16120 | BOLT | 3 | Enquire → |
| 1250 | F1035-16110 | BOLT | 1 | Enquire → |
| 1300 | 31201-71800 | WASHER | 14 | Enquire → |
| 1400 | F1035-12030 | BOLT | 12 | Enquire → |
| 1500 | 37525-07901 | WASHER | 12 | Enquire → |
| 1550 | * | SEAL ASSY,OIL, REAR | 1 | Enquire → |
| 1600 | 37111-14200 | SLINGER | 1 | Enquire → |
| 1700 | 37511-04300 | SEAL,OIL | 1 | Enquire → |
| 1800 | 37511-09100 | PLUG | 1 | Enquire → |
| 1900 | 37511-23101 | COVER | 1 | Enquire → |
| 2000 | 37511-13200 | PACKING | 1 | Enquire → |
| 2100 | F1805-10020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 2105 | F1805-10030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2500 | F5000-24000 | PLUG,DRAIN | 1 | Enquire → |
| 2600 | 05946-02401 | WASHER,SEALING | 1 | Enquire → |
P375B-130OIL PAN9 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 37513-10200 | PACKING,OIL PAN | 1 | Enquire → |
| 0300 | F1805-12035 | BOLT,W/WASHER, B/W | 41 | Enquire → |
| 0400 | 33546-06900 | COVER | 2 | Enquire → |
| 0500 | 05507-20600 | O-RING | 2 | Enquire → |
| 0600 | F1805-12025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0650 | F5006-17000 | PLUG,TAPERED | 1 | Enquire → |
| 0700 | F5000-36000 | PLUG,DRAIN | 2 | Enquire → |
| 0800 | 05946-03601 | WASHER,SEALING | 2 | Enquire → |
| 2200 | 37513-00500 | PAN,OIL | 1 | Enquire → |
P375B-140MOUNTING BRACKET10 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | F1035-12075 | BOLT | 9 | Enquire → |
| 0250 | F1035-12060 | BOLT | 1 | Enquire → |
| 0300 | 37525-07901 | WASHER | 10 | Enquire → |
| 0600 | F1035-16040 | BOLT | 6 | Enquire → |
| 0650 | F1035-16050 | BOLT | 2 | Enquire → |
| 0700 | 31201-71800 | WASHER | 8 | Enquire → |
| 1100 | 45R14-10301 | BRACKET,MOUNTING, FRONT | 1 | Enquire → |
| 1200 | 37514-18201 | BRACKET,MOUNTING, REAR,R.H. | 1 | Enquire → |
| 1300 | 37514-18301 | BRACKET,MOUNTING, REAR,L.H. | 1 | Enquire → |
| 1450 | 37514-10800 | BOLT,JACK | 4 | Enquire → |
P375B-170PISTON7 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0120 | 37517-05500 | PISTON | 6 | Enquire → |
| 0240 | 37517-00020 | RING SET,PISTON | 6 | Enquire → |
| 0350 | * | RING,COMPRESSION, NO.1 | 6 | Enquire → |
| 0400 | * | RING,COMPRESSION, NO.2 | 6 | Enquire → |
| 0520 | * | RING,OIL | 6 | Enquire → |
| 0600 | 37517-18100 | PIN,PISTON | 6 | Enquire → |
| 0700 | F3202-07000 | RING,SNAP | 12 | Enquire → |
P375B-190CONNECTING ROD16 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | * | ROD ASSY,CONNECTING, BEFORE WEIGHT ADJUST | 6 | Enquire → |
| 0200001 | * | ROD,CONNECTING | 6 | Enquire → |
| 0200002 | * | CAP,CONNECTING ROD | 6 | Enquire → |
| 0200003 | 37519-20301 | BOLT,CONNECTING ROD | 12 | Enquire → |
| 0200004 | * | BUSHING,CONNECTING ROD, SEMIFINISHED | 6 | Enquire → |
| 1100 | 37519-13100 | BEARING,CONNECTING ROD | 12 | Enquire → |
| 1200 | 37519-10600 | BUSHING,CONNECTING ROD, FINISHED | 6 | Enquire → |
| 2100 | 37519-85020 | ROD ASSY,CONNECTING, RANK:A 14.9KG | 6 | Enquire → |
| 2200 | 37519-85030 | ROD ASSY,CONNECTING, RANK:B 15.0KG | 6 | Enquire → |
| 2300 | 37519-85040 | ROD ASSY,CONNECTING, RANK:C 15.1KG | 6 | Enquire → |
| 2400 | 37519-85050 | ROD ASSY,CONNECTING, RANK:D 15.2LG | 6 | Enquire → |
| 2500 | 37519-85060 | ROD ASSY,CONNECTING, RANK:E 15.3KG | 6 | Enquire → |
| 2600 | 37519-85070 | ROD ASSY,CONNECTING, RANK:F 15.4KG | 6 | Enquire → |
| 2700 | 37519-85080 | ROD ASSY,CONNECTING, RANK:G 15.5KG | 6 | Enquire → |
| 2800 | 37519-85090 | ROD ASSY,CONNECTING, RANK:H 15.6KG | 6 | Enquire → |
| 2900 | 37519-86010 | ROD ASSY,CONNECTING, RANK:I 15.7KG | 6 | Enquire → |
P375B-200CRANKSHAFT7 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0600 | 37520-25193 | CRANKSHAFT SUB ASSY | 1 | Enquire → |
| 0600001 | * | CRANKSHAFT | 1 | Enquire → |
| 0600002 | 37523-00101 | GEAR,CRANKSHAFT, Z=60 | 1 | Enquire → |
| 0600003 | F2846-05000 | PIN,DOWEL | 1 | Enquire → |
| 1800 | F2846-20000 | PIN,DOWEL | 2 | Enquire → |
| 1960 | 37507-04600 | PIN,DOWEL | 2 | Enquire → |
| 2200 | 37520-25014 | CRANKSHAFT ASSY | 1 | Enquire → |
P375B-210FLYWHEEL5 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | F1035-22080 | BOLT | 8 | Enquire → |
| 0400 | 33707-11701 | WASHER | 8 | Enquire → |
| 0600 | 37521-00061 | FLYWHEEL ASSY | 1 | Enquire → |
| 0600001 | * | FLYWHEEL | 1 | Enquire → |
| 0600002 | 32521-02201 | GEAR,RING, Z=182 | 1 | Enquire → |
P375B-220DAMPER10 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0001 | * | LABEL SET,THERMO, INCLUDES 20 PIECIES | 1 | Enquire → |
| 0001001 | 32522-04111 | LABEL,THERMO, 75ﾟC TO 95ﾟC | 20 | Enquire → |
| 0002 | * | LABEL SET,THERMO, INCLUDES 20 PIECIES | 1 | Enquire → |
| 0002001 | 32522-04211 | LABEL,THERMO, 100ﾟC TO 120ﾟC | 20 | Enquire → |
| 0003 | * | LABEL SET,THERMO, INCLUDES 20 PIECIES | 1 | Enquire → |
| 0003001 | 32522-04311 | LABEL,THERMO, 50ﾟC TO 70ﾟC | 20 | Enquire → |
| 0200 | 37522-10500 | DAMPER,HASSE | 1 | Enquire → |
| 0500 | 36207-18100 | POINTER | 1 | Enquire → |
| 0650 | F1035-12020 | BOLT | 1 | Enquire → |
| 0660 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
P375B-230TIMING GEAR11 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0150 | 37523-13012 | GEAR ASSY,IDLER, Z=80 & 40 | 1 | Enquire → |
| 0150001 | * | GEAR,IDLER | 1 | Enquire → |
| 0150002 | 37123-03400 | BUSHING | 1 | Enquire → |
| 0600 | 37523-13504 | SHAFT,IDLER | 1 | Enquire → |
| 0700 | F1035-12030 | BOLT | 4 | Enquire → |
| 0750 | 37525-07901 | WASHER | 4 | Enquire → |
| 0800 | 32423-03800 | PLATE,THRUST | 1 | Enquire → |
| 0900 | F1035-10025 | BOLT | 2 | Enquire → |
| 0950 | 34A48-02100 | WASHER | 2 | Enquire → |
| 1000 | 37523-11100 | GEAR,CAMSHAFT, Z=60 | 1 | Enquire → |
| 1100 | 37523-12101 | GEAR,INJECTION PUMP, Z=60 | 1 | Enquire → |
P375B-250FRONT ACCESSORY DRIVE24 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 37525-70100 | COVER,FRONT | 1 | Enquire → |
| 0300 | 37525-40200 | PACKING,FRONT COVER | 1 | Enquire → |
| 0400 | F1805-12035 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0410 | F1035-12045 | BOLT | 2 | Enquire → |
| 0415 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
| 0420 | F2846-14000 | PIN,DOWEL | 2 | Enquire → |
| 0460 | * | SEAL ASSY,OIL, FRONT | 1 | Enquire → |
| 0500 | 37425-08201 | SLINGER,FRONT | 1 | Enquire → |
| 0600 | 37511-04300 | SEAL,OIL | 1 | Enquire → |
| 0750 | 37525-12202 | PULLEY,CRANKSHAFT | 1 | Enquire → |
| 0900 | 33707-11701 | WASHER | 8 | Enquire → |
| 1600 | 05507-20900 | O-RING | 1 | Enquire → |
| 1700 | F1805-12035 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 3100 | 37525-28101 | PULLEY,CRANK, 2-BELT | 1 | Enquire → |
| 3250 | 05978-22180 | BOLT | 8 | Enquire → |
| 3550 | 37525-08902 | COVER,BELT, R.H. | 1 | Enquire → |
| 3600 | 37525-48500 | COVER,BELT, L.H. | 1 | Enquire → |
| 3650 | 45R25-51500 | STAY,BELT COVER | 1 | Enquire → |
| 3700 | F1805-10020 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3800 | F1035-10020 | BOLT | 2 | Enquire → |
| 3850 | F1035-10025 | BOLT | 4 | Enquire → |
| 3900 | F2300-10000 | NUT | 6 | Enquire → |
| 3950 | F2500-10000 | WASHER,PLAIN | 8 | Enquire → |
| 4000 | F2515-10000 | WASHER,SPRING | 6 | Enquire → |
P375B-251TACHOMETER8 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 1200 | 37525-27301 | COUPLING | 1 | Enquire → |
| 1260 | 37525-19400 | WASHER | 3 | Enquire → |
| 1300 | 64343-92100 | BOLT,SET | 3 | Enquire → |
| 1400 | F2846-12000 | PIN,DOWEL | 2 | Enquire → |
| 1450 | F3003-01831 | SEAL,OIL | 1 | Enquire → |
| 3400 | 37525-48300 | CASE,OIL SEAL | 1 | Enquire → |
| 5050 | F2460-22000 | NUT,CAP | 1 | Enquire → |
| 5100 | F2500-22000 | WASHER,PLAIN | 2 | Enquire → |
P375B-253REAR ACCESSORY DRIVE18 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37525-63100 | CASE,DRIVE | 1 | Enquire → |
| 0200 | 37525-03600 | O-RING | 1 | Enquire → |
| 0300 | F1035-12045 | BOLT | 4 | Enquire → |
| 0400 | 37525-07901 | WASHER | 4 | Enquire → |
| 0450 | F1035-12050 | BOLT | 3 | Enquire → |
| 0460 | 37525-07901 | WASHER | 3 | Enquire → |
| 0500 | F1035-12035 | BOLT | 1 | Enquire → |
| 0510 | 37525-07901 | WASHER | 1 | Enquire → |
| 0610 | 37525-24101 | SHAFT,DRIVE | 1 | Enquire → |
| 0700 | 37725-15700 | KEY,SUNK | 1 | Enquire → |
| 0750 | F2870-10032 | KEY,WOODRUFF | 1 | Enquire → |
| 0800 | 37525-00600 | WASHER,DRIVE SHAFT | 1 | Enquire → |
| 0900 | 37125-25602 | COUPLING,DAMPER | 1 | Enquire → |
| 1000 | F8010-06309 | BEARING,BALL | 1 | Enquire → |
| 1100 | F3202-10000 | RING,SNAP | 1 | Enquire → |
| 1200 | F8006-06210 | BEARING,BALL | 1 | Enquire → |
| 1300 | 37525-13400 | SEAL,OIL | 1 | Enquire → |
| 1400 | 04827-71300 | PLUG TAPERED | 1 | Enquire → |
P375B-255HOURMETER,TACHOMETER5 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 37725-06100 | GASKET,TACHODRIVE | 1 | Enquire → |
| 1100 | F2500-22000 | WASHER,PLAIN | 1 | Enquire → |
| 1200 | F2460-22000 | NUT,CAP | 1 | Enquire → |
| 2000 | 30407-05601 | COVER | 1 | Enquire → |
| 2100 | F1805-08020 | BOLT,W/WASHER, B/W | 2 | Enquire → |
P375B-300INLET SYSTEM6 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 37530-00200 | PACKING,INLET PORT | 6 | Enquire → |
| 0650 | 37530-11301 | CONNECTOR | 1 | Enquire → |
| 0700 | 35A30-00100 | O-RING | 2 | Enquire → |
| 0800 | 37530-11201 | PACKING,AIR DUCT | 1 | Enquire → |
| 0900 | F1805-10025 | BOLT,W/WASHER, B/W | 8 | Enquire → |
| 3100 | 37530-09302 | DUCT,INLET | 1 | Enquire → |
P375B-303INLET PIPE & AIR CLEANER17 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 3010 | 37530-02401 | SILENCER ASSY | 1 | Enquire → |
| 3010001 | 37530-02418 | PRE-CLEANER | 1 | Enquire → |
| 3100 | 45R30-20800 | DUCT,SILENCER | 1 | Enquire → |
| 3200 | F2500-10000 | WASHER,PLAIN | 4 | Enquire → |
| 3300 | F2300-10000 | NUT | 4 | Enquire → |
| 3400 | 45R30-11111 | STAY,DUCT | 1 | Enquire → |
| 3500 | 94411-06200 | SHIM, T=1.0 | 6 | Enquire → |
| 3600 | F1805-10030 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 3700 | F1805-10035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3800 | 45R30-20901 | BAND | 1 | Enquire → |
| 3900 | F1805-10035 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 4000 | F2500-10000 | WASHER,PLAIN | 8 | Enquire → |
| 4100 | F2300-10000 | NUT | 4 | Enquire → |
| 4200 | F1035-08040 | BOLT | 1 | Enquire → |
| 4300 | F2515-08000 | WASHER,SPRING | 1 | Enquire → |
| 4400 | F2500-08000 | WASHER,PLAIN | 2 | Enquire → |
| 4500 | F2300-08000 | NUT | 2 | Enquire → |
P375B-305AIR HEATER & SPACER4 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0500 | 37530-20500 | PACKING,AIR | 6 | Enquire → |
| 0601 | 37546-04900 | COVER | 6 | Enquire → |
| 0610 | F5006-10000 | PLUG,TAPERED | 6 | Enquire → |
| 0700 | F1805-12030 | BOLT,W/WASHER, B/W | 12 | Enquire → |
P375B-320EXHAUST SYSTEM(MANIFOLD)23 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 37532-09500 | GASKET | 6 | Enquire → |
| 0310 | 37532-07900 | BOLT,FLANGE | 12 | Enquire → |
| 0330 | 37532-12900 | BOLT,FLANGE | 12 | Enquire → |
| 0340 | 37768-03602 | SPACER | 12 | Enquire → |
| 0350 | 66E46-04200 | WASHER | 12 | Enquire → |
| 0600 | 37532-01900 | STAY | 1 | Enquire → |
| 0610 | F2005-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0620 | F1805-12050 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1030 | F2445-12000 | NUT,SELF-LOCKING | 4 | Enquire → |
| 5050 | 37532-40035 | MANIFOLD ASSY,EXHAUST | 1 | Enquire → |
| 5050001 | * | MANIFOLD,EXHAUST | 1 | Enquire → |
| 5050002 | 04826-23000 | CAP,SEALING | 9 | Enquire → |
| 5050003 | 37N32-04100 | PLUG,SCREW | 6 | Enquire → |
| 5050004 | 41232-03900 | GASKET | 6 | Enquire → |
| 5060 | 37532-02601 | COVER,EXHAUST MANIFOLD | 1 | Enquire → |
| 5070 | 37532-12700 | PACKING | 1 | Enquire → |
| 5080 | F1805-10025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 5150 | 35A32-00700 | STUD,TURBO | 4 | Enquire → |
| 5170 | 37733-13901 | WASHER | 8 | Enquire → |
| 5600 | 33407-16100 | COCK,WATER DRAIN | 1 | Enquire → |
| 5800 | 37552-01200 | PIPE,DRAIN COCK | 1 | Enquire → |
| 5900 | 30007-05500 | CLAMP | 1 | Enquire → |
| 6000 | 35A46-09400 | CLAMP | 1 | Enquire → |
P375B-321EXHAUST SYSTEM(PIPE)17 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0110 | 37532-06101 | PIPE ASSY,EXHAUST | 1 | Enquire → |
| 0110001 | * | PIPE | 1 | Enquire → |
| 0110002 | 37532-06112 | CLOTH,GLASS | 1 | Enquire → |
| 0110003 | 37532-06113 | WIRE | 1 | Enquire → |
| 0270 | 37532-06200 | GASKET,EXHAUST PIPE | 1 | Enquire → |
| 0280 | 32532-07435 | BOLT | 6 | Enquire → |
| 0290 | 37733-13901 | WASHER | 6 | Enquire → |
| 0300 | 37N32-04100 | PLUG,SCREW | 2 | Enquire → |
| 0400 | 41232-03900 | GASKET | 2 | Enquire → |
| 0500 | F5006-10000 | PLUG,TAPERED | 1 | Enquire → |
| 0550 | 04826-89200 | COVER,BLIND | 1 | Enquire → |
| 1800 | 37532-21301 | BRACKET,EXHAUST PIPE | 1 | Enquire → |
| 1900 | 37532-21401 | BRACKET,EXHAUST PIPE | 1 | Enquire → |
| 2200 | 32532-07435 | BOLT | 3 | Enquire → |
| 2300 | 32532-06435 | BOLT | 4 | Enquire → |
| 2500 | 34A48-02202 | WASHER | 7 | Enquire → |
| 2550 | 33311-01600 | WASHER | 7 | Enquire → |
P375B-330TURBOCHARGER (TF15M-67QVRC-49)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 1310 | 49129-01100 | TURBOCHARGER ASSY, TF15M | 1 | Enquire → |
| 2000 | 37533-03100 | GASKET,TURBO | 1 | Enquire → |
P4933-000TURBOCHARGER(CARTRIDGE)20 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 49129-19100 | PLATE,TURBINE BACK | 1 | Enquire → |
| 0200 | 49127-21500 | BEARING THRUST | 1 | Enquire → |
| 0300 | 49127-21400 | DEFLECTOR OIL | 1 | Enquire → |
| 0400 | 49127-43300 | SLEEVE,FLINGER | 1 | Enquire → |
| 0500 | 49127-23100 | RING,PISTON | 1 | Enquire → |
| 0600 | 49127-21300 | INSERT | 1 | Enquire → |
| 0700 | 49162-23202 | RING,SNAP | 1 | Enquire → |
| 0810 | 49129-45101 | NUT,LOCK | 1 | Enquire → |
| 0900 | 49181-22600 | O-RING | 1 | Enquire → |
| 1000 | 49127-42100 | RING,THRUST | 1 | Enquire → |
| 1100 | 49127-42200 | RING,THRUST | 1 | Enquire → |
| 1200 | 49129-22101 | BEARING | 2 | Enquire → |
| 1300 | 49129-23100 | RING,SNAP | 3 | Enquire → |
| 1400 | 49121-31701 | RING,SEAL | 1 | Enquire → |
| 1610 | 49129-30200 | SHAFT & T/W ASSY | 1 | Enquire → |
| 1815 | * | HOUSING,BEARING | 1 | Enquire → |
| 1900 | 49183-22800 | PIN,SPRING | 2 | Enquire → |
| 2700 | 49129-40501 | WHEEL,COMPRESSOR | 1 | Enquire → |
| 9900 | 49129-08340 | CARTRIDGE ASSY | 1 | Enquire → |
| 9990 | 49129-25110 | HOUSING ASSY,BEARING | 1 | Enquire → |
P4933-100TURBOCHARGER(COMPRESSOR COVER)9 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 49127-53001 | V-CLAMP ASSY | 1 | Enquire → |
| 0100001 | * | V-CLAMP | 1 | Enquire → |
| 0100002 | 49181-14113 | NUT,LOCK | 1 | Enquire → |
| 0200 | 49162-51100 | O-RING | 1 | Enquire → |
| 0500 | F3156-24000 | O-RING | 1 | Enquire → |
| 0700 | * | NAME,PLATE | 1 | Enquire → |
| 0800 | 00665-02048 | RIVET,SCREW | 2 | Enquire → |
| 1310 | 49129-55502 | DIFFUSER | 1 | Enquire → |
| 2810 | 49129-54121 | COVER ASSY | 1 | Enquire → |
P4933-200TURBOCHARGER(TURBINE HOUSING)4 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0410 | 49182-18000 | BOLT | 8 | Enquire → |
| 0800 | 49129-16200 | PLATE,CLAMP | 4 | Enquire → |
| 2850 | 49129-12510 | HOUSING,TURBINE | 1 | Enquire → |
| 2900 | 49127-11101 | LAGGING | 1 | Enquire → |
P375B-350OIL PUMP30 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37535-70010 | PUMP ASSY,OIL | 1 | Enquire → |
| 0100001 | * | CASE ASSY,OIL PUMP | 1 | Enquire → |
| 0100002 | * | GEAR,HEAD, Z=32 | 1 | Enquire → |
| 0100003 | * | CASE SUB ASSY | 1 | Enquire → |
| 0100004 | * | CASE | 1 | Enquire → |
| 0100005 | * | BUSHING | 3 | Enquire → |
| 0100006 | * | GEAR ASSY,DRIVE, Z=10 | 1 | Enquire → |
| 0100007 | * | GEAR | 1 | Enquire → |
| 0100008 | * | SHAFT,DRIVE | 1 | Enquire → |
| 0100009 | * | PIN,DOWEL | 2 | Enquire → |
| 0100010 | 37535-62010 | COVER ASSY,OIL PUMP | 1 | Enquire → |
| 0100011 | * | COVER | 1 | Enquire → |
| 0100012 | * | BUSHING | 3 | Enquire → |
| 0100013 | 37535-77010 | GEAR ASSY,DRIVEN, Z=10 | 2 | Enquire → |
| 0100014 | * | GEAR | 2 | Enquire → |
| 0100015 | * | SHAFT,DRIVEN | 2 | Enquire → |
| 0100016 | 37535-64010 | GEAR ASSY,IDLE, Z=35 | 1 | Enquire → |
| 0100017 | * | GEAR | 1 | Enquire → |
| 0100018 | * | BUSHING | 1 | Enquire → |
| 0100019 | 37535-60800 | SPINDLE | 1 | Enquire → |
| 0100020 | 35A35-13200 | VALVE,SAFETY | 2 | Enquire → |
| 0100021 | 35A35-52100 | SPRING,SAFETY VALVE | 2 | Enquire → |
| 0100022 | 35A35-13300 | STOPPER,SAFETY VALVE | 2 | Enquire → |
| 0100023 | 35A35-13400 | SEAT,SPRING | 2 | Enquire → |
| 0100024 | MF472087 | PIN,SPLIT | 2 | Enquire → |
| 0100025 | MH004069 | NUT,FLANGE | 1 | Enquire → |
| 0100026 | F1805-10035 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0200 | F1035-12100 | BOLT | 4 | Enquire → |
| 0300 | F2515-12000 | WASHER,SPRING | 4 | Enquire → |
| 0400 | 37535-01100 | SHIM, T=0.10 | 2 | Enquire → |
P375B-360OIL STRAINER PIPING18 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0400 | F1035-10080 | BOLT | 2 | Enquire → |
| 0500 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 0510 | 05507-20650 | O-RING | 1 | Enquire → |
| 0600 | 37536-01201 | SUPPORT,OIL PIPE | 1 | Enquire → |
| 0800 | F1805-12025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0900 | 37536-10200 | PIPE,OIL | 1 | Enquire → |
| 1000 | F1035-10080 | BOLT | 2 | Enquire → |
| 1050 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 1100 | F1805-12030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1200 | 05507-20450 | O-RING | 1 | Enquire → |
| 1250 | 05507-20500 | O-RING | 1 | Enquire → |
| 2100 | 37536-38102 | STRAINER,OIL | 1 | Enquire → |
| 2200 | 37536-17700 | SUPPORT | 1 | Enquire → |
| 2300 | F1035-10030 | BOLT | 1 | Enquire → |
| 2310 | F2500-10000 | WASHER,PLAIN | 2 | Enquire → |
| 2320 | F2515-10000 | WASHER,SPRING | 1 | Enquire → |
| 2330 | F2300-10000 | NUT | 1 | Enquire → |
| 2400 | F1825-10025 | BOLT,W/WASHER, B/W | 1 | Enquire → |
P375B-361OIL FILTER PIPING15 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37536-34020 | VALVE ASSY,RELIEF | 1 | Enquire → |
| 0100001 | 37536-34200 | VALVE,RELIEF | 1 | Enquire → |
| 0100002 | 37536-14400 | SPRING RELIEF VALVE | 1 | Enquire → |
| 0100003 | 37536-34500 | SLEEVE,RELIEF VALVE | 1 | Enquire → |
| 0100004 | 37536-04800 | PLATE,RELIEF VALVE | 1 | Enquire → |
| 0100005 | 37536-14700 | STOPPER,RELIEF VALVE | 1 | Enquire → |
| 0190 | 05507-20450 | O-RING | 1 | Enquire → |
| 0550 | 37536-19902 | PIPE,OIL, EMERGENCY | 1 | Enquire → |
| 0600 | 05507-20450 | O-RING | 3 | Enquire → |
| 0610 | F1035-12085 | BOLT | 2 | Enquire → |
| 0650 | F2005-12035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0750 | 37536-09501 | PLATE | 1 | Enquire → |
| 0850 | 35B36-02900 | GASKET,OIL | 1 | Enquire → |
| 0950 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
| 1000 | 33546-06900 | COVER | 1 | Enquire → |
P375B-362OIL SYSTEM PARTS26 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0150 | F2005-12025 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 0160 | F2500-12000 | WASHER,PLAIN | 1 | Enquire → |
| 0170 | F4610-16000 | BOLT,EYE | 1 | Enquire → |
| 0180 | 05946-01601 | WASHER,SEALING | 2 | Enquire → |
| 0225 | F2005-10025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0310 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0320 | 37536-12700 | PACKING,OIL | 1 | Enquire → |
| 0500 | 35C36-02900 | PACKING | 1 | Enquire → |
| 0600 | 05507-20300 | O-RING | 1 | Enquire → |
| 0700 | F1155-10040 | BOLT | 2 | Enquire → |
| 0800 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 0900 | 37536-33100 | PIPE,OIL | 1 | Enquire → |
| 1000 | F1805-10020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 1200 | 37536-43300 | PIPE,DRAIN | 1 | Enquire → |
| 1400 | F4610-12000 | BOLT,EYE | 1 | Enquire → |
| 1500 | 05946-01201 | WASHER,SEALING | 2 | Enquire → |
| 1600 | F4610-14000 | BOLT,EYE | 1 | Enquire → |
| 1700 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
| 1800 | 37736-09500 | STAY,OIL PIPE | 1 | Enquire → |
| 1900 | F1805-10020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 2000 | F2500-10000 | WASHER,PLAIN | 1 | Enquire → |
| 2900 | 37536-26801 | PIPE,OIL | 1 | Enquire → |
| 3060 | 37533-22100 | PIPE,DRAIN | 1 | Enquire → |
| 3210 | F1035-12020 | BOLT | 1 | Enquire → |
| 3220 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 3250 | F2500-12000 | WASHER,PLAIN | 1 | Enquire → |
P375B-390OIL COOLER27 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37539-40011 | COOLER ASSY,OIL | 1 | Enquire → |
| 0100001 | 37539-20100 | ELEMENT,OIL COOLER | 2 | Enquire → |
| 0100002 | 37539-30300 | COVER,OIL COOLER | 1 | Enquire → |
| 0100003 | ME064526 | PLUG | 2 | Enquire → |
| 0100004 | MH035093 | O-RING | 2 | Enquire → |
| 0100005 | F5006-13000 | PLUG,TAPERED | 2 | Enquire → |
| 0100006 | F5006-10000 | PLUG,TAPERED | 2 | Enquire → |
| 0100007 | ME150442 | NUT | 8 | Enquire → |
| 0100008 | MH035626 | O-RING | 4 | Enquire → |
| 0100009 | MH035092 | O-RING | 8 | Enquire → |
| 0200 | 37539-10200 | PACKING,OIL COOLER | 1 | Enquire → |
| 0300 | 37539-00400 | O-RING | 3 | Enquire → |
| 0400 | F1825-12035 | BOLT,W/WASHER, B/W | 19 | Enquire → |
| 0450 | F1825-12030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0500 | 37539-10500 | THERMOSTAT,OIL | 1 | Enquire → |
| 0600 | 37539-00600 | SEAL,THERMOSTAT | 1 | Enquire → |
| 0800 | F4540-08000 | CONNECTOR | 1 | Enquire → |
| 1000 | 45770-40700 | CONNECTOR | 1 | Enquire → |
| 2000 | 37539-28101 | COVER,OIL COOLER | 1 | Enquire → |
| 2010 | F5000-24000 | PLUG,DRAIN | 1 | Enquire → |
| 2030 | 05946-02401 | WASHER,SEALING | 1 | Enquire → |
| 2050 | 05507-10180 | O-RING | 1 | Enquire → |
| 2100 | 05507-20400 | O-RING | 1 | Enquire → |
| 2200 | 05507-20750 | O-RING | 1 | Enquire → |
| 2300 | F1805-12030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2400 | 05978-12095 | BOLT | 2 | Enquire → |
| 2500 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
P375B-400OIL FILTER30 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | F1035-12110 | BOLT | 4 | Enquire → |
| 0300 | F2515-12000 | WASHER,SPRING | 9 | Enquire → |
| 0400 | F2500-12000 | WASHER,PLAIN | 9 | Enquire → |
| 0700 | 05507-20400 | O-RING | 4 | Enquire → |
| 0800 | 05507-10180 | O-RING | 2 | Enquire → |
| 1900 | 37540-48400 | BRACKET KIT,OIL FILTER | 1 | Enquire → |
| 2000 | 37540-28700 | FILTER ASSY,OIL | 1 | Enquire → |
| 2000001 | 37540-18300 | BRACKET ASSY | 1 | Enquire → |
| 2000002 | 37540-21100 | ELEMENT,OIL FILTER | 2 | Enquire → |
| 2000003 | 37540-12100 | CARTRIDGE,BY-PASS FILTER | 1 | Enquire → |
| 2000004 | 37140-01300 | COCK | 1 | Enquire → |
| 2000005 | 36240-05300 | COVER | 1 | Enquire → |
| 2000006 | 36240-05400 | COVER | 1 | Enquire → |
| 2000007 | 36240-15600 | GASKET | 1 | Enquire → |
| 2000008 | 05507-10160 | O-RING | 2 | Enquire → |
| 2000009 | 36240-05800 | PIN | 3 | Enquire → |
| 2000010 | F1035-08025 | BOLT | 6 | Enquire → |
| 2000011 | F2515-08000 | WASHER,SPRING | 6 | Enquire → |
| 2000012 | F2500-08000 | WASHER,PLAIN | 6 | Enquire → |
| 2000013 | F5005-26001 | PLUG,TAPERED | 1 | Enquire → |
| 2000014 | F5005-21001 | PLUG,TAPERED | 4 | Enquire → |
| 2000015 | 37540-11300 | ALARM,OIL FILTER | 1 | Enquire → |
| 2000016 | F4202-24000 | GASKET | 1 | Enquire → |
| 2100 | 37536-17900 | ADAPTER ASSY | 1 | Enquire → |
| 2100001 | * | BODY ASSY | 1 | Enquire → |
| 2100002 | MS661141 | PLUG,TAPERED | 1 | Enquire → |
| 2100003 | F5005-26001 | PLUG,TAPERED | 1 | Enquire → |
| 2300 | F1035-12040 | BOLT | 1 | Enquire → |
| 2400 | F1035-12070 | BOLT | 1 | Enquire → |
| 2500 | 37540-08201 | BOLT | 3 | Enquire → |
P375B-420OIL FILLER4 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0110 | 32542-20501 | FILLER,OIL | 1 | Enquire → |
| 0120 | 34A42-00500 | CAP,OIL FILLER | 1 | Enquire → |
| 0200 | 33442-20200 | PACKING | 1 | Enquire → |
| 0300 | F1805-10025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
P375B-425OIL LEVEL GAGE9 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37542-23600 | GUIDE,OIL LEVEL GAGE | 1 | Enquire → |
| 0150 | 37542-03101 | GAGE,OIL LEVEL | 1 | Enquire → |
| 0250 | F4540-12000 | CONNECTOR | 1 | Enquire → |
| 0300 | 37542-13700 | STAY,LEVEL GAGE GUIDE | 1 | Enquire → |
| 0330 | 05946-10500 | WASHER | 1 | Enquire → |
| 0350 | F1035-12045 | BOLT | 1 | Enquire → |
| 0370 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 0400 | 32336-09501 | CLAMP | 1 | Enquire → |
| 0500 | F1805-12020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
P375B-430BREATHER17 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 35B36-02900 | GASKET,OIL | 1 | Enquire → |
| 0300 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2300 | 47500-51301 | PIPE,BREATHER | 1 | Enquire → |
| 2400 | 47500-57102 | PIPE,BREATHER | 1 | Enquire → |
| 2500 | 04826-28050 | PACKING | 2 | Enquire → |
| 2600 | 05507-10420 | O-RING | 1 | Enquire → |
| 2700 | F1805-10025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 2900 | F1825-10020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 3000 | 32542-11300 | ELEMENT,BREATHER | 1 | Enquire → |
| 3200 | F4010-50010 | HOSE,RUBBER | 1 | Enquire → |
| 3300 | 05317-50701 | CLAMP | 2 | Enquire → |
| 4500 | 37543-08400 | PIPE,BREATHER | 1 | Enquire → |
| 4550 | 04826-00040 | FLANGE | 1 | Enquire → |
| 4600 | 04826-28040 | PACKING | 1 | Enquire → |
| 4650 | F1035-12045 | BOLT | 4 | Enquire → |
| 4700 | F2300-12000 | NUT | 4 | Enquire → |
| 4750 | F2515-12000 | WASHER,SPRING | 4 | Enquire → |
P375B-450WATER PUMP48 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0150 | 37545-80011 | PUMP ASSY,WATER | 1 | Enquire → |
| 0150001 | * | CASE | 1 | Enquire → |
| 0150002 | 37545-00200 | COVER | 1 | Enquire → |
| 0150003 | F3153-17000 | O-RING | 1 | Enquire → |
| 0150004 | 37545-30400 | SHAFT,WATER PUMP | 1 | Enquire → |
| 0150005 | 37545-00500 | IMPELLER | 1 | Enquire → |
| 0150006 | 37545-20600 | SEAL UNIT,MECHANICAL | 1 | Enquire → |
| 0150007 | 37545-00700 | PULLEY | 1 | Enquire → |
| 0150008 | 37545-20800 | SPACER | 1 | Enquire → |
| 0150009 | 37545-01300 | SEAL,OIL | 1 | Enquire → |
| 0150010 | 37545-01400 | SEAL,OIL | 1 | Enquire → |
| 0150011 | F8012-06308 | BEARING,BALL | 1 | Enquire → |
| 0150012 | F8008-06208 | BEARING,BALL | 1 | Enquire → |
| 0150013 | 37545-00300 | RING,SNAP | 1 | Enquire → |
| 0150014 | F2320-24000 | NUT,JAM | 1 | Enquire → |
| 0150015 | 37545-01501 | WASHER,SPRING | 1 | Enquire → |
| 0150016 | 37545-01600 | KEY,WOODRUFF | 1 | Enquire → |
| 0150017 | F3202-09000 | RING,SNAP | 1 | Enquire → |
| 0150018 | F3156-04000 | O-RING | 1 | Enquire → |
| 0150019 | 34A35-00900 | PLUG | 1 | Enquire → |
| 0150020 | 37745-00901 | PIPE,WATER PUMP | 1 | Enquire → |
| 0160 | F5006-10000 | PLUG,TAPERED | 1 | Enquire → |
| 0200 | F3153-09500 | O-RING | 1 | Enquire → |
| 0300 | 05507-10150 | O-RING | 1 | Enquire → |
| 0400 | 05507-20250 | O-RING | 1 | Enquire → |
| 0500 | F1805-12030 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 0510 | F1805-12050 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1000 | 37545-02900 | COCK,DRAIN | 1 | Enquire → |
| 1010 | 34407-02700 | CONNECTOR | 1 | Enquire → |
| 1100 | F4300-00800 | CLAMP,HOSE | 1 | Enquire → |
| 1200 | F4002-05100 | TUBE,SOFT VINYL | 1 | Enquire → |
| 1600 | 37549-06600 | V-BELT,RAW EDGE, L=1555 | 1 | Enquire → |
| 1700 | 35A45-02000 | TENSION ASSY,PULLEY | 1 | Enquire → |
| 1700001 | F1035-12025 | BOLT | 1 | Enquire → |
| 1700002 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 1700003 | 35A45-02100 | PLATE,THRUST | 1 | Enquire → |
| 1700004 | 35A45-11302 | PULLEY,TENSION | 1 | Enquire → |
| 1700005 | 35A45-01501 | SPACER | 1 | Enquire → |
| 1700006 | 35A45-21101 | BRACKET,TENSION | 1 | Enquire → |
| 1700007 | 35A45-02200 | SPACER | 1 | Enquire → |
| 1700008 | F3202-05200 | RING,SNAP | 1 | Enquire → |
| 1700009 | 35A45-01401 | BEARING,BALL | 2 | Enquire → |
| 1720 | 37545-08100 | PLATE,TENSION | 1 | Enquire → |
| 1800 | F1805-12040 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 1900 | F1805-12030 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 2000 | F1805-12035 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 2100 | 64387-21600 | BOLT | 1 | Enquire → |
| 2200 | F2300-12000 | NUT | 1 | Enquire → |
P375B-461COOLING SYSTEM47 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 37546-21101 | CONNECTOR | 6 | Enquire → |
| 0400 | 05505-31065 | O-RING | 12 | Enquire → |
| 0410 | 05505-57060 | O-RING | 1 | Enquire → |
| 0550 | F1805-10025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0600 | 37546-11300 | RING,SNAP | 6 | Enquire → |
| 0800 | 37546-31700 | THERMOSTAT, 71℃ | 2 | Enquire → |
| 0900 | 37546-01800 | SEAL,THERMOSTAT | 2 | Enquire → |
| 0910 | 37546-00900 | RING,SNAP | 2 | Enquire → |
| 1000 | 37546-23702 | CASE,THERMOSTAT | 1 | Enquire → |
| 1010 | F5006-10000 | PLUG,TAPERED | 1 | Enquire → |
| 1050 | 36646-00090 | VALVE ASSY,JIGGLE | 1 | Enquire → |
| 1200 | 37546-23300 | PACKING,COVER WATER | 1 | Enquire → |
| 1300 | F1805-10030 | BOLT,W/WASHER, B/W | 6 | Enquire → |
| 1400 | 37546-23402 | BRACKET,THERMO CASE | 1 | Enquire → |
| 1460 | 37547-03700 | STAY,THERMO BRACKET | 1 | Enquire → |
| 1465 | F2515-08000 | WASHER,SPRING | 2 | Enquire → |
| 1470 | F1035-08020 | BOLT | 2 | Enquire → |
| 1500 | F1805-10025 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 1510 | F1035-10030 | BOLT | 1 | Enquire → |
| 1511 | F2515-10000 | WASHER,SPRING | 1 | Enquire → |
| 1800 | 37546-15200 | PIPE,BY-PASS | 1 | Enquire → |
| 1830 | 37546-04400 | STAY,BY-PASS PIPE | 1 | Enquire → |
| 1840 | F1805-12025 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 1900 | 32546-46800 | GASKET,SEA WATER | 1 | Enquire → |
| 1950 | F3153-06000 | 0-RING | 3 | Enquire → |
| 2000 | F1805-12030 | BOLT,W/WASHER, B/W | 6 | Enquire → |
| 2050 | F1805-10030 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 2052 | F1805-10035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2060 | 37546-03500 | COVER | 1 | Enquire → |
| 2065 | 45R93-42400 | BRACKET | 1 | Enquire → |
| 2100 | 37546-14600 | HOSE,RUBBER | 1 | Enquire → |
| 2110 | 05317-50701 | CLAMP | 2 | Enquire → |
| 2400 | F5005-21001 | PLUG,TAPERED | 4 | Enquire → |
| 4500 | 37546-17101 | COVER,THERMOSTAT | 1 | Enquire → |
| 4650 | 45R46-10200 | PIPE,WATER | 1 | Enquire → |
| 4700 | 45R46-10100 | PIPE,WATER | 1 | Enquire → |
| 4705 | 04826-40040 | COUPLING | 1 | Enquire → |
| 4720 | 37532-12700 | PACKING,EXHAUST WATER | 1 | Enquire → |
| 4755 | F1805-10025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 4772 | 45352-74601 | PACKING | 1 | Enquire → |
| 6750 | 37546-02500 | PIPE,WATER | 1 | Enquire → |
| 6800 | 37546-02600 | PIPE,WATER | 1 | Enquire → |
| 6900 | F1805-12025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 7000 | 04826-40032 | COUPLING | 1 | Enquire → |
| 7200 | 37546-09200 | COVER | 1 | Enquire → |
| 7210 | 37546-19800 | PACKING | 1 | Enquire → |
| 7220 | F1805-12030 | BOLT,W/WASHER, B/W | 4 | Enquire → |
P375B-510SEA WATER COOLING28 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0110 | 45R51-14500 | PIPE,SEA WATER | 1 | Enquire → |
| 0200 | 42783-02100 | PACKING | 1 | Enquire → |
| 0300 | F2005-10030 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0500 | 04826-00065 | FLANGE | 1 | Enquire → |
| 0600 | 04826-28065 | PACKING | 1 | Enquire → |
| 0700 | F1035-14050 | BOLT | 4 | Enquire → |
| 0800 | F2300-14000 | NUT | 4 | Enquire → |
| 0900 | F2515-14000 | WASHER,SPRING | 4 | Enquire → |
| 0950 | 45R51-22620 | PIPE,SEA WATER | 1 | Enquire → |
| 1050 | 42783-08400 | COCK,DRAIN | 1 | Enquire → |
| 1060 | F4002-10100 | TUBE,SOFT VINYL | 1 | Enquire → |
| 1150 | 45R51-13101 | PLATE | 1 | Enquire → |
| 1200 | 42783-02100 | PACKING | 3 | Enquire → |
| 1450 | 45R51-13200 | COVER | 1 | Enquire → |
| 1550 | 05979-10115 | BOLT | 4 | Enquire → |
| 1600 | F2515-10000 | WASHER,SPRING | 4 | Enquire → |
| 1710 | 45R51-12500 | PIPE,SEA WATER | 2 | Enquire → |
| 1720 | 37551-07500 | ORIFICE | 1 | Enquire → |
| 1730 | 45R51-12702 | CONNECTOR | 1 | Enquire → |
| 1800 | F3153-09000 | O-RING | 4 | Enquire → |
| 1950 | 05979-10110 | BOLT | 8 | Enquire → |
| 2000 | F2515-10000 | WASHER,SPRING | 8 | Enquire → |
| 2050 | 58034-04400 | WASHER | 8 | Enquire → |
| 2100 | 04826-41050 | COUPLING | 2 | Enquire → |
| 2700 | 45R51-12830 | PIPE,SEA WATER | 1 | Enquire → |
| 3300 | 45151-83701 | PACKING | 1 | Enquire → |
| 3400 | F2005-12035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3500 | F2500-12000 | WASHER,PLAIN | 2 | Enquire → |
P375B-530SEA WATER PUMP31 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0102 | 45B53-20190 | SEAL KIT,HOUSING | 1 | Enquire → |
| 0100 | 37553-30100 | PUMP ASSY,SEA WATER | 1 | Enquire → |
| 0100001 | 45B53-10111 | BODY | 1 | Enquire → |
| 0100002 | 45B53-10112 | CASE,BEARING | 1 | Enquire → |
| 0100003 | 45B53-10113 | SHAFT | 1 | Enquire → |
| 0100004 | 45B53-10114 | PLATE,WEAR | 1 | Enquire → |
| 0100005 | 45B53-10115 | COVER | 1 | Enquire → |
| 0100006 | 45B53-10300 | HOUSING | 1 | Enquire → |
| 0100007 | 45B53-10201 | IMPELLER | 1 | Enquire → |
| 0100008 | 45B53-10118 | SEAL UNIT,MECANICAL | 1 | Enquire → |
| 0100009 | 45B53-10119 | SEAL,OIL | 1 | Enquire → |
| 0100010 | 45B53-10121 | O-RING | 1 | Enquire → |
| 0100011 | 45B53-10122 | BEARING | 1 | Enquire → |
| 0100012 | 45B53-10123 | BEARING | 1 | Enquire → |
| 0100013 | 45B53-10124 | CLIP | 1 | Enquire → |
| 0100014 | 45B53-10125 | O-RING | 1 | Enquire → |
| 0100015 | 45B53-10126 | O-RING | 1 | Enquire → |
| 0100016 | 45B53-10127 | O-RING | 2 | Enquire → |
| 0100017 | 45B53-10128 | BOLT | 8 | Enquire → |
| 0100018 | 45B53-10129 | BOLT | 8 | Enquire → |
| 0100019 | 45B53-10131 | WASHER,SPRING | 16 | Enquire → |
| 0100020 | 45B53-10132 | NUT | 1 | Enquire → |
| 0100021 | 45B53-10133 | PIPE,DRAIN | 1 | Enquire → |
| 0100022 | 45B53-10134 | KEY | 1 | Enquire → |
| 0100023 | 45B53-10135 | O-RING | 1 | Enquire → |
| 0115 | 42783-00144 | WASHER,LOCK | 1 | Enquire → |
| 0200 | 37553-08300 | GEAR,SEA WATER PUMP, Z=24 | 1 | Enquire → |
| 0300 | 37553-18201 | PLATE | 1 | Enquire → |
| 0400 | 05507-21250 | O-RING | 1 | Enquire → |
| 0500 | F1805-10030 | BOLT,W/WASHER, B/W | 7 | Enquire → |
| 0700 | F4002-10100 | TUBE,SOFT VINYL | 1 | Enquire → |
P375B-550-01AIR COOLER34 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0305 | 05978-12290 | BOLT | 3 | Enquire → |
| 0315 | 05978-12165 | BOLT | 20 | Enquire → |
| 0335 | 05978-12170 | BOLT | 3 | Enquire → |
| 0340 | 33311-01600 | WASHER | 23 | Enquire → |
| 0350 | 34A48-02202 | WASHER | 3 | Enquire → |
| 1000 | 37555-04700 | PIPE,DRAIN | 1 | Enquire → |
| 1010 | 37555-04800 | CONNECTOR | 2 | Enquire → |
| 1020 | F5006-13000 | PLUG,TAPERED | 1 | Enquire → |
| 1040 | F4010-10028 | HOSE,RUBBER | 1 | Enquire → |
| 1050 | F4010-10033 | HOSE,RUBBER | 1 | Enquire → |
| 1060 | 05317-50201 | CLAMP | 4 | Enquire → |
| 1070 | 34268-00300 | SPACER | 1 | Enquire → |
| 1080 | 05317-41800 | CLIP | 1 | Enquire → |
| 1090 | F1035-08040 | BOLT | 1 | Enquire → |
| 1100 | F2515-08000 | WASHER,SPRING | 1 | Enquire → |
| 1110 | F2500-08000 | WASHER,PLAIN | 1 | Enquire → |
| 1120 | 00434-10010 | CONNECTOR | 1 | Enquire → |
| 1130 | 37555-14300 | PIPE,OIL | 1 | Enquire → |
| 1140 | 05317-41000 | CLIP | 1 | Enquire → |
| 1150 | F1805-12035 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 1160 | F2500-12000 | WASHER,PLAIN | 1 | Enquire → |
| 1300 | * | PIPE KIT,DRAIN | 1 | Enquire → |
| 2080 | 37555-25011 | INTERCOOLER ASSY | 1 | Enquire → |
| 2081 | F5006-13000 | PLUG,TAPERED | 1 | Enquire → |
| 2100 | 37555-28500 | GASKET | 1 | Enquire → |
| 2400 | 45R30-11300 | BRACKET | 1 | Enquire → |
| 2450 | 37555-10600 | GASKET,AIR | 1 | Enquire → |
| 2550 | F1805-10030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2600 | F2500-10000 | WASHER,PLAIN | 2 | Enquire → |
| 2650 | F5000-10000 | PLUG,DRAIN | 1 | Enquire → |
| 2660 | F4202-10000 | GASKET | 1 | Enquire → |
| 2750 | 45R55-50100 | COVER,MANIFOLD | 1 | Enquire → |
| 2900 | F1805-10045 | BOLT,W/WASHER, B/W | 8 | Enquire → |
| 3000 | F2500-10000 | WASHER,PLAIN | 8 | Enquire → |
P375B-550-02AIR COOLER(ASSY)15 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 2080 | 37555-25011 | INTERCOOLER ASSY | 1 | Enquire → |
| 2080001 | 37555-05100 | ELEMENT ASSY | 1 | Enquire → |
| 2080002 | 37555-05400 | PACKING | 2 | Enquire → |
| 2080003 | 37555-23200 | COVER,AIR COOLER | 1 | Enquire → |
| 2080004 | 37555-05301 | CASE,INTERCOOLER | 1 | Enquire → |
| 2080005 | 37555-33400 | GASKET | 2 | Enquire → |
| 2080006 | 37555-05500 | PLTAE | 2 | Enquire → |
| 2080007 | 37555-15700 | CONNECTOR | 2 | Enquire → |
| 2080008 | 05507-20650 | O-RING | 4 | Enquire → |
| 2080009 | 05507-20900 | O-RING | 2 | Enquire → |
| 2080010 | F2005-10025 | BOLT,W/WASHER, B/W | 8 | Enquire → |
| 2080011 | 37555-05200 | BOLT,HEXAGON SOCKET | 10 | Enquire → |
| 2080012 | F1155-10045 | BOLT | 8 | Enquire → |
| 2080013 | F4202-10000 | GASKET | 8 | Enquire → |
| 2080014 | F2500-10000 | WASHER,PLAIN | 8 | Enquire → |
P375B-610INJECTION PUMP BRACKET35 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0400 | 37561-21101 | BRACKET,INJECTION PUMP | 1 | Enquire → |
| 0450 | 05507-10140 | O-RING | 1 | Enquire → |
| 0500 | F1035-12035 | BOLT | 3 | Enquire → |
| 0550 | 05978-12150 | BOLT | 2 | Enquire → |
| 0600 | 37525-07901 | WASHER | 7 | Enquire → |
| 0800 | F1035-12110 | BOLT | 4 | Enquire → |
| 0850 | 37561-01800 | PIN,DOWEL | 2 | Enquire → |
| 0900 | 37525-07901 | WASHER | 4 | Enquire → |
| 1000 | 37561-10701 | STAY,INJECTION PUMP | 1 | Enquire → |
| 1010 | F1035-12025 | BOLT | 2 | Enquire → |
| 1020 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
| 1030 | F1035-14030 | BOLT | 2 | Enquire → |
| 1040 | F2515-14000 | WASHER,SPRING | 2 | Enquire → |
| 1295 | 37562-16700 | COVER,COUPLING | 1 | Enquire → |
| 1320 | 37561-53200 | BRACKET,COUPLING COVER | 1 | Enquire → |
| 1330 | F1825-08016 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 1340 | F1035-12075 | BOLT | 3 | Enquire → |
| 1350 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 1400 | 48230-05200 | BOLT,EYE | 1 | Enquire → |
| 1450 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
| 1500 | 31262-51901 | COCK,AIR VENT | 1 | Enquire → |
| 3400 | 35A61-19900 | WIRE,SEAL | 1 | Enquire → |
| 3500 | 34A87-07200 | SEAL | 1 | Enquire → |
| 4910 | F1805-08020 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 4920 | F2325-08000 | NUT,JAM | 2 | Enquire → |
| 4930 | F2445-10000 | NUT,SELF-LOCKING | 1 | Enquire → |
| 4940 | F2500-10000 | WASHER,PLAIN | 1 | Enquire → |
| 4950 | F2515-10000 | WASHER,SPRING | 1 | Enquire → |
| 4960 | 05507-10360 | O-RING | 1 | Enquire → |
| 4970 | 05946-02701 | WASHER,SEALING | 1 | Enquire → |
| 4980 | 37561-09901 | CAP,RACK SET | 1 | Enquire → |
| 4990 | 37561-11901 | SPRING,RETURN | 1 | Enquire → |
| 5000 | 37561-42801 | CASE,SPRING | 1 | Enquire → |
| 5020 | 37562-07900 | STAY,COUPLING COVER | 1 | Enquire → |
| 5030 | 48A10-12012 | PUMP ASSY,INJECTION | 1 | Enquire → |
P48A1-110PUMP ASSY(PLUNGER BARREL)43 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 48A11-03004 | PLUNGER ASSY | 6 | Enquire → |
| 0200001 | * | PLUNGER | 6 | Enquire → |
| 0200002 | * | BARREL | 6 | Enquire → |
| 0200003 | 49168-18800 | PIN,KNOCK | 6 | Enquire → |
| 1100 | 48202-12400 | O-RING | 18 | Enquire → |
| 1300 | 48A11-02101 | PINION, R5 | 6 | Enquire → |
| 1400 | 48202-21202 | SEAT,SPRING, UPPER | 6 | Enquire → |
| 1500 | 48202-21302 | SEAT,SPRING, LOWER | 6 | Enquire → |
| 1600 | 48202-11700 | SPRING,PLUNGER | 6 | Enquire → |
| 1700 | 48202-02601 | BOLT,BARREL | 6 | Enquire → |
| 1800 | 48202-07601 | BOLT,BARREL | 6 | Enquire → |
| 1900 | 48202-22800 | WASHER,BARREL | 12 | Enquire → |
| 2000 | * | SHIM SET,BARREL | 6 | Enquire → |
| 2000001 | 48270-05100 | SHIM,BARREL, T=0.40 | AR | Enquire → |
| 2000002 | 48270-05200 | SHIM,BARREL, T=0.45 | AR | Enquire → |
| 2000003 | 48270-05300 | SHIM,BARREL, T=0.50 | AR | Enquire → |
| 2000004 | 48270-05400 | SHIM,BARREL, T=0.55 | AR | Enquire → |
| 2000005 | 48270-05500 | SHIM,BARREL, T=0.60 | AR | Enquire → |
| 2000006 | 48270-05600 | SHIM,BARREL, T=0.65 | AR | Enquire → |
| 2000007 | 48270-05700 | SHIM,BARREL, T=0.70 | AR | Enquire → |
| 2000008 | 48270-05800 | SHIM,BARREL, T=0.75 | AR | Enquire → |
| 2000009 | 48270-05900 | SHIM,BARREL, T=0.80 | AR | Enquire → |
| 2000010 | 48270-06100 | SHIM,BARREL, T=0.85 | AR | Enquire → |
| 2000011 | 48270-06200 | SHIM,BARREL, T=0.90 | AR | Enquire → |
| 2000012 | 48270-06300 | SHIM,BARREL, T=0.95 | AR | Enquire → |
| 2000013 | 48270-06400 | SHIM,BARREL, T=1.00 | AR | Enquire → |
| 2000014 | 48270-06500 | SHIM,BARREL, T=1.05 | AR | Enquire → |
| 2000015 | 48270-06600 | SHIM,BARREL, T=1.10 | AR | Enquire → |
| 2000016 | 48270-06700 | SHIM,BARREL, T=1.15 | AR | Enquire → |
| 2000017 | 48270-06800 | SHIM,BARREL, T=1.20 | AR | Enquire → |
| 2000018 | 48270-06900 | SHIM,BARREL, T=1.25 | AR | Enquire → |
| 2000019 | 48270-07100 | SHIM,BARREL, T=1.30 | AR | Enquire → |
| 2000020 | 48270-07200 | SHIM,BARREL, T=1.35 | AR | Enquire → |
| 2000021 | 48270-07300 | SHIM,BARREL, T=1.40 | AR | Enquire → |
| 2000022 | 48270-07400 | SHIM,BARREL, T=1.45 | AR | Enquire → |
| 2000023 | 48270-07500 | SHIM,BARREL, T=1.50 | AR | Enquire → |
| 2000024 | 48270-07600 | SHIM,BARREL, T=1.55 | AR | Enquire → |
| 2000025 | 48270-07700 | SHIM,BARREL, T=1.60 | AR | Enquire → |
| 2000026 | 48270-07800 | SHIM,BARREL, T=1.65 | AR | Enquire → |
| 2000027 | 48270-07900 | SHIM,BARREL, T=1.70 | AR | Enquire → |
| 2000028 | 48270-08100 | SHIM,BARREL, T=1.75 | AR | Enquire → |
| 2100 | 48202-05800 | WIRE | 1 | Enquire → |
| 2200 | 48202-07700 | SEAL | 1 | Enquire → |
P48A1-120PUMP ASSY(RACK CONTROL)6 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 48A12-10103 | RACK,CONTROL, L.H.THREAD | 1 | Enquire → |
| 0400 | 48202-23500 | BELLOWS | 1 | Enquire → |
| 0500 | 48202-08201 | BAND,BELLOWS, D16 | 1 | Enquire → |
| 0600 | 48202-08301 | BAND,BELLOWS, D30 | 1 | Enquire → |
| 1000 | 48202-33900 | SCREW,SET | 1 | Enquire → |
| 1010 | 05946-00801 | WASHER,SEALING | 1 | Enquire → |
P48A1-130PUMP ASSY(PUMP CASE)18 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48A13-10200 | CASE,PUMP | 1 | Enquire → |
| 1100 | 48202-02901 | PIN | 7 | Enquire → |
| 1200 | 04826-21000 | CAP,SEALING | 7 | Enquire → |
| 1300 | 48202-42501 | BUSH,RACK | 2 | Enquire → |
| 1500 | 48202-05500 | BOLT,EYE | 2 | Enquire → |
| 1510 | 05946-00801 | WASHER,SEALING | 2 | Enquire → |
| 4000 | * | PLATE,NAME | 1 | Enquire → |
| 4010 | 00665-02048 | RIVET,SCREW | 2 | Enquire → |
| 4100 | 48202-54001 | VALVE ASSY,CHECK | 1 | Enquire → |
| 4100001 | * | SCREW | 1 | Enquire → |
| 4100002 | 05634-01200 | NUT,SELF-LOCKING | 1 | Enquire → |
| 4100003 | * | BODY,VALVE | 1 | Enquire → |
| 4100004 | 05507-10060 | O-RING | 1 | Enquire → |
| 4100005 | * | SPRING,VALVE | 1 | Enquire → |
| 4100006 | F8000-08000 | STEEL BALL,BEARING | 1 | Enquire → |
| 4110 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
| 4200 | F5000-12000 | PLUG,DRAIN | 1 | Enquire → |
| 4210 | 05946-01201 | WASHER,SEALING | 1 | Enquire → |
P48A1-140PUMP ASSY(CAMSHAFT)19 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 48210-20201 | CAMSHAFT | 1 | Enquire → |
| 0900 | F2870-07025 | KEY,WOODRUFF | 1 | Enquire → |
| 1000 | F8143-32207 | BEARING,TAPERED ROLLER | 2 | Enquire → |
| 1100 | 48202-22203 | COVER,REAR | 1 | Enquire → |
| 1110 | 05507-20800 | O-RING | 1 | Enquire → |
| 1120 | 48202-07100 | SEAL,OIL | 1 | Enquire → |
| 1130 | F1010-08025 | BOLT,FLANGE | 4 | Enquire → |
| 1200 | 48202-14100 | SHIM,CASE, T=0.50 | AR | Enquire → |
| 1210 | 48202-14200 | SHIM,CASE, T=0.10 | AR | Enquire → |
| 1220 | 48202-14300 | SHIM,CASE, T=0.15 | AR | Enquire → |
| 1230 | 48202-14400 | SHIM,CASE, T=0.30 | AR | Enquire → |
| 1300 | 48210-35603 | COVER,FRONT | 1 | Enquire → |
| 1310 | 05507-20800 | O-RING | 1 | Enquire → |
| 1330 | F1010-08025 | BOLT,FLANGE | 4 | Enquire → |
| 1400 | 48202-02300 | BEARING,CENTER | 1 | Enquire → |
| 1410 | F1010-08050 | BOLT,FLANGE | 2 | Enquire → |
| 1420 | 05507-10080 | O-RING | 2 | Enquire → |
| 1500 | F2325-24000 | NUT,JAM | 1 | Enquire → |
| 1600 | 32507-01400 | WASHER | 1 | Enquire → |
P48A1-150PUMP ASSY(TAPPET)5 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48202-35902 | TAPPET | 6 | Enquire → |
| 1200 | 48A15-01002 | ROLLER ASSY,TAPPET | 6 | Enquire → |
| 1200001 | * | ROLLER,TAPPET | 6 | Enquire → |
| 1200002 | * | BUSHING,ROLLER | 6 | Enquire → |
| 1200003 | * | PIN,ROLLER | 6 | Enquire → |
P48A1-160PUMP ASSY(CPV)7 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48270-50010 | VALVE ASSY,DELIVERY | 6 | Enquire → |
| 0900 | 48270-11801 | SPRING,DELIVERY VALVE | 6 | Enquire → |
| 0910 | 48A16-00101 | SEAT,SPRING | 6 | Enquire → |
| 1000 | 48270-14101 | HOLDER,CPV | 6 | Enquire → |
| 2000 | 05507-20250 | O-RING | 6 | Enquire → |
| 3000 | 48291-01300 | CAP,HOLDER | 6 | Enquire → |
| 5000 | 48270-30018 | HOLDER KIT,CPV | 6 | Enquire → |
P48A1-170PUMP ASSY(COUPLING)15 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48251-00101 | FLYWHEEL | 1 | Enquire → |
| 0250 | 48251-16300 | COUPLING,CROSS | 1 | Enquire → |
| 0400 | 48251-30400 | WASHER,COUPLING | 8 | Enquire → |
| 0500 | 48251-30500 | BUSHING | 8 | Enquire → |
| 0600 | 48251-00600 | WASHER,COUPLING WIDE | 2 | Enquire → |
| 0700 | 48251-20700 | NUT,FLANGE | 2 | Enquire → |
| 0800 | 48251-10801 | BOLT,SHORT | 6 | Enquire → |
| 0900 | 48251-10901 | BOLT,LONG | 2 | Enquire → |
| 1000 | 48A17-08100 | WASHER,COUPLING | 1 | Enquire → |
| 1100 | F1035-14085 | BOLT | 1 | Enquire → |
| 1400 | 48251-11400 | PLATE,LAMINATE, T=0.8 | 14 | Enquire → |
| 2325 | 48C17-13201 | COUPLING | 1 | Enquire → |
| 3620 | 48C17-33018 | COUPLING KIT | 1 | Enquire → |
| 4620 | * | COUPLING ASSY | 1 | Enquire → |
| 5000 | * | LAMINATE PLATE KIT | 2 | Enquire → |
P48A1-180PUMP ASSY(DEFLECTOR BOLT)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48A13-01102 | BOLT,DEFLECTOR | 12 | Enquire → |
| 1000 | 05946-01201 | WASHER,SEALING | 12 | Enquire → |
P48A1-190PUMP ASSY(FEED PUMP)23 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | * | PUMP,FEED | 1 | Enquire → |
| 0100001 | 15200-21720 | HOUSING | 1 | Enquire → |
| 0100002 | 15210-01120 | PISTON | 1 | Enquire → |
| 0100003 | 15210-40100 | SPRING,PISTON | 1 | Enquire → |
| 0100004 | 15210-50400 | PLUG | 1 | Enquire → |
| 0100005 | 15211-11920 | TAPPET ASSY | 1 | Enquire → |
| 0100006 | 15211-20100 | ROLLER | 1 | Enquire → |
| 0100007 | 15211-30700 | PIN | 1 | Enquire → |
| 0100008 | 15211-40400 | GUIDE | 2 | Enquire → |
| 0100009 | 15211-50200 | VALVE | 4 | Enquire → |
| 0100010 | 15211-60200 | SPRING | 4 | Enquire → |
| 0100011 | 15211-70100 | PLUG | 3 | Enquire → |
| 0100012 | 15212-10200 | RING,SNAP | 1 | Enquire → |
| 0100013 | * | PUMP,PRIMING | 1 | Enquire → |
| 0100014 | 15230-04020 | BOLT,EYE | 1 | Enquire → |
| 0100015 | 02973-14570 | BOLT,EYE | 1 | Enquire → |
| 0100016 | 02934-14130 | GASKET | 5 | Enquire → |
| 0100017 | 15231-01300 | ADAPTER | 2 | Enquire → |
| 0101 | 04245-01120 | PUMP KIT,FEED | 1 | Enquire → |
| 0105 | 48A19-00100 | PUMP,FEED | 1 | Enquire → |
| 0200 | 05507-20350 | O-RING | 1 | Enquire → |
| 0300 | F1010-06016 | BOLT,FRANGE | 3 | Enquire → |
| 0500 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
P48A1-200PUMP ASSY(EYE BOLT)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | F4610-14000 | BOLT,EYE | 1 | Enquire → |
| 1000 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
P48A1-230PUMP ASSY(POINTER)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 48A13-02201 | POINTER | 1 | Enquire → |
| 0900 | F1010-06012 | BOLT,FLANGE | 2 | Enquire → |
P48A1-950PUMP ASSY(PLUNGER BLOCK)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 48A95-03006 | BLOCK ASSY,PLUNGER | 6 | Enquire → |
| 1100 | 48291-00301 | HOLDER,PLUNGER | 6 | Enquire → |
P375B-612-01INJECTION PIPE NOZZLE (PIPING)48 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0095 | 37560-03001 | NOZZLE ASSY,INJECTION | 6 | Enquire → |
| 0150 | 37561-01602 | GLAND,NOZZLE | 6 | Enquire → |
| 0160 | F2305-14000 | NUT | 6 | Enquire → |
| 0170 | 33561-14500 | WASHER,NOZZLE GLAND | 6 | Enquire → |
| 0200 | 05507-10420 | O-RING | 6 | Enquire → |
| 0210 | 05507-10340 | O-RING | 6 | Enquire → |
| 0220 | 05507-10260 | O-RING | 6 | Enquire → |
| 0300 | 37561-16800 | GASKET,NOZZLE | 6 | Enquire → |
| 0310 | 37561-08800 | BUSHING,INJECTION PIPE | 6 | Enquire → |
| 0315 | 05318-00300 | BAND,CLIP | 6 | Enquire → |
| 0350 | 37561-23500 | COVER | 12 | Enquire → |
| 0360 | 37561-13600 | HOLDER | 12 | Enquire → |
| 0370 | 37861-04400 | HOLDER | 12 | Enquire → |
| 0380 | 37861-04500 | HOLDER, WITH SLIT | AR | Enquire → |
| 1000 | 37560-24100 | PIPE,INJECTION, NO.1 | 1 | Enquire → |
| 1100 | 37560-24200 | PIPE,INJECTION, NO.2 | 1 | Enquire → |
| 1200 | 37560-24300 | PIPE,INJECTION, NO.3 | 1 | Enquire → |
| 1300 | 37560-24400 | PIPE,INJECTION, NO.4 | 1 | Enquire → |
| 1400 | 37560-24500 | PIPE,INJECTION, NO.5 | 1 | Enquire → |
| 1500 | 37560-24600 | PIPE,INJECTION, NO.6 | 1 | Enquire → |
| 1515 | 37562-12800 | CLAMP | 1 | Enquire → |
| 1535 | 37562-12812 | SEAT,PIPE | 1 | Enquire → |
| 1650 | 37562-18800 | CLAMP,INJECTION PIPE | 1 | Enquire → |
| 1660 | 05978-12140 | BOLT | 2 | Enquire → |
| 1670 | 32568-04600 | SPACER | 2 | Enquire → |
| 1680 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
| 1800 | F1805-08035 | BOLT,W/WASHER, B/W | 7 | Enquire → |
| 2010 | 37562-13301 | SEAT,PIPE | 6 | Enquire → |
| 2103 | 37562-15902 | PLATE,CLAMP | 14 | Enquire → |
| 2110 | 37562-13101 | SEAT,PIPE | 16 | Enquire → |
| 2130 | 37562-13401 | SEAT,PIPE | 7 | Enquire → |
| 2150 | 37761-03602 | PLATE,CLAMP | 1 | Enquire → |
| 2200 | 37562-03201 | PLATE,CLAMP | 1 | Enquire → |
| 2280 | F1035-10090 | BOLT | 6 | Enquire → |
| 2290 | F1805-10050 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 2300 | F1805-10080 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 2310 | F1805-10055 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 2350 | F2515-10000 | WASHER,SPRING | 12 | Enquire → |
| 2360 | 35A60-04100 | CLAMP | 3 | Enquire → |
| 2370 | 35A60-04200 | CLAMP | 3 | Enquire → |
| 2380 | F1805-06030 | BOLT,W/WASHER, B/W | 3 | Enquire → |
| 2400 | MM430-70301 | CLAMP | 4 | Enquire → |
| 2450 | F2515-06000 | WASHER,SPRING | 2 | Enquire → |
| 2500 | F2300-06000 | NUT | 2 | Enquire → |
| 2600 | F1035-06025 | BOLT | 2 | Enquire → |
| 2610 | F1035-10070 | BOLT | 4 | Enquire → |
| 2620 | F1035-10045 | BOLT | 2 | Enquire → |
| 2640 | F2300-10000 | NUT | 6 | Enquire → |
P375B-612-02INJECTION PIPE NOZZLE (NOZZLE)14 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0095 | 37560-03001 | NOZZLE ASSY,INJECTION | 6 | Enquire → |
| 0095001 | 37760-23011 | HOLDER ASSY,NOZZLE | 6 | Enquire → |
| 0095002 | * | BODY | 6 | Enquire → |
| 0095003 | 37760-03200 | PUSHROD,NOZZLE | 6 | Enquire → |
| 0095004 | 37561-26300 | NUT,RETAINING | 6 | Enquire → |
| 0095005 | 37561-26400 | SPRING,NOZZLE | 6 | Enquire → |
| 0095006 | 37760-03300 | PLUG,NOZZLE | 6 | Enquire → |
| 0095007 | 37561-56700 | CONNECTOR,INLET | 6 | Enquire → |
| 0095008 | 37561-26900 | SPACER,NOZZLE | 6 | Enquire → |
| 0095009 | 05946-01401 | WASHER,SEALING | 6 | Enquire → |
| 0095010 | 48742-00311 | SHIM, T=0.40 | AR | Enquire → |
| 0095011 | F8001-30014 | ROLLER,BEARING | 12 | Enquire → |
| 0095012 | F8001-40014 | ROLLER,BEARING | 12 | Enquire → |
| 0095013 | 37560-17500 | TIP ASSY,NOZZLE | 6 | Enquire → |
P375B-613LEAK OFF PIPE18 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37561-04100 | PIPE,FUEL LEAK OFF | 1 | Enquire → |
| 0200 | 32536-19400 | BOLT,EYE | 5 | Enquire → |
| 0300 | 34A36-36100 | BOLT,EYE | 1 | Enquire → |
| 0400 | 05946-01001 | WASHER,SEALING | 3 | Enquire → |
| 0500 | 05946-01001 | WASHER,SEALING | 12 | Enquire → |
| 1100 | 37561-13900 | PIPE,LEAK | 1 | Enquire → |
| 1150 | F4110-10000 | BOLT,EYE | 1 | Enquire → |
| 1200 | 37561-34200 | PIPE,LEAK | 1 | Enquire → |
| 1300 | 37561-24302 | PIPE,FUEL LEAK | 1 | Enquire → |
| 1320 | F5006-17000 | PLUG,TAPERED | 1 | Enquire → |
| 1350 | 05946-01401 | WASHER,SEALING | 3 | Enquire → |
| 1400 | F4540-10000 | CONNECTOR | 1 | Enquire → |
| 1600 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1900 | 58313-03100 | SPACER | 1 | Enquire → |
| 1950 | F1035-10045 | BOLT | 1 | Enquire → |
| 2010 | F1035-12045 | BOLT | 1 | Enquire → |
| 2020 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 2600 | 37561-03700 | SPACER | 1 | Enquire → |
P375B-620FUEL FILTER11 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 37562-60100 | FILTER ASSY,FUEL | 1 | Enquire → |
| 0200001 | 37562-10111 | BRACKET,FUEL FILTER | 1 | Enquire → |
| 0200002 | 32562-60300 | ELEMENT,FUEL FILTER | 2 | Enquire → |
| 0200003 | 32562-00115 | PLUG | 2 | Enquire → |
| 0200004 | 05946-00801 | WASHER,SEALING | 2 | Enquire → |
| 1100 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1200 | F1825-10025 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 9000 | 32562-00800 | LABEL,CAUTION | 1 | Enquire → |
| 9200 | F1805-10020 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 9300 | 37562-09800 | BRACKET,FUEL FILTER | 1 | Enquire → |
| 9400 | 37562-09901 | BRACKET,FUEL FILTER | 1 | Enquire → |
P375B-621FUEL FILTER PIPING12 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0260 | 37161-04500 | JOINT | 1 | Enquire → |
| 0410 | 37562-01500 | PIPE,FUEL | 1 | Enquire → |
| 0420 | 37562-01600 | PIPE,FUEL | 1 | Enquire → |
| 0700 | F4610-14000 | BOLT,EYE | 2 | Enquire → |
| 0800 | 05946-01401 | WASHER,SEALING | 4 | Enquire → |
| 0900 | F1035-10035 | BOLT | 1 | Enquire → |
| 1000 | F2300-10000 | NUT | 1 | Enquire → |
| 1100 | F2515-10000 | WASHER,SPRING | 1 | Enquire → |
| 1200 | 37261-01700 | CLAMP | 3 | Enquire → |
| 1300 | 37261-01800 | SEAT | 4 | Enquire → |
| 1400 | F1805-10035 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 1500 | F2500-10000 | WASHER,PLAIN | 2 | Enquire → |
P375B-630-01GOVERNOR(DRIVE GEAR)22 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0190 | 37563-07011 | GOVERNOR,PSG | 1 | Enquire → |
| 0210 | 37763-06100 | SPACER | 1 | Enquire → |
| 0220 | 05634-00610 | NUT,SELF-LOCKING | 1 | Enquire → |
| 0500 | 37563-13101 | CASE,DRIVE | 1 | Enquire → |
| 0600 | 04826-22000 | CAP,SEALING | 2 | Enquire → |
| 0700 | 05507-21450 | O-RING | 1 | Enquire → |
| 0800 | F1035-12045 | BOLT | 4 | Enquire → |
| 1000 | F2515-12000 | WASHER,SPRING | 4 | Enquire → |
| 1100 | 37563-13200 | GEAR,DRIVE | 1 | Enquire → |
| 1300 | 37563-13400 | GEAR,IDLER | 1 | Enquire → |
| 1350 | 37563-08400 | SHAFT,DRIVE | 1 | Enquire → |
| 1500 | 37563-03600 | SHAFT,IDLER | 1 | Enquire → |
| 1600 | F8006-06205 | BEARING,BALL | 2 | Enquire → |
| 1700 | F8006-06204 | BEARING,BALL | 2 | Enquire → |
| 1900 | F3200-02500 | RING,SNAP | 1 | Enquire → |
| 2100 | F3202-04700 | RING,SNAP | 1 | Enquire → |
| 2200 | 67352-01500 | WASHER | 1 | Enquire → |
| 2300 | F1805-08020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 2400 | F1450-08045 | STUD | 4 | Enquire → |
| 2470 | F2515-08000 | WASHER,SPRING | 4 | Enquire → |
| 2500 | F2300-08000 | NUT | 4 | Enquire → |
| 2600 | 37463-31900 | PACKING | 1 | Enquire → |
P375B-630-02GOVERNOR(OIL PIPING)38 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 2900 | F4540-08000 | CONNECTOR | 2 | Enquire → |
| 2910 | 35A37-05601 | CONNECTOR | 1 | Enquire → |
| 3010 | F1825-10065 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3030 | 37537-15101 | BRACKET,OIL FILTER | 1 | Enquire → |
| 3032 | F1035-10025 | BOLT | 3 | Enquire → |
| 3034 | F2515-10000 | WASHER,SPRING | 3 | Enquire → |
| 3040 | 37537-15201 | STAY,OIL FILTER | 1 | Enquire → |
| 3060 | F1035-10040 | BOLT | 2 | Enquire → |
| 3080 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 3085 | 34A40-12100 | FILTER ASSY,GOVERNOR OIL | 1 | Enquire → |
| 3085001 | 34A40-02111 | COVER ASSY | 1 | Enquire → |
| 3085002 | 34A40-02112 | CASE ASSY | 1 | Enquire → |
| 3085003 | 34A40-12130 | ELEMENT ASSY | 1 | Enquire → |
| 3085004 | 34A40-02114 | SEAT,SPRING | 1 | Enquire → |
| 3085005 | 34A40-02115 | BOLT,CENTER | 1 | Enquire → |
| 3085006 | 34A40-02140 | PLUG,DRAIN | 1 | Enquire → |
| 3085007 | 34A40-02150 | PLUG,AIR | 1 | Enquire → |
| 3085008 | 34A40-02160 | O-RING | 1 | Enquire → |
| 3085009 | 34A40-02170 | PACKING,COVER | 1 | Enquire → |
| 3085010 | MH035067 | GASKET | 1 | Enquire → |
| 3085011 | 34A40-02180 | PACKING | 1 | Enquire → |
| 3085012 | 34A40-02121 | SPRING,SET | 1 | Enquire → |
| 3115 | 32565-06900 | VALVE,OVER FLOW | 1 | Enquire → |
| 3120 | 05946-01401 | WASHER,SEALING | 4 | Enquire → |
| 3200 | 37537-15300 | PIPE,OIL | 1 | Enquire → |
| 3215 | F1805-10016 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3222 | 37537-45500 | PIPE,OIL | 1 | Enquire → |
| 3225 | F4540-06300 | CONNECTOR | 1 | Enquire → |
| 3229 | 35A37-05101 | CONNECTOR | 1 | Enquire → |
| 3247 | 37537-15400 | PIPE,OIL | 1 | Enquire → |
| 3248 | F4610-10000 | BOLT,EYE | 1 | Enquire → |
| 3249 | 05946-01001 | WASHER,SEALING | 2 | Enquire → |
| 3390 | F5006-13000 | PLUG,TAPERED | 1 | Enquire → |
| 3505 | 37563-17600 | BOLT,EYE | 1 | Enquire → |
| 4100 | 37536-27300 | PIPE,DRAIN | 1 | Enquire → |
| 4360 | 37536-04901 | STAY,PIPE | 1 | Enquire → |
| 4365 | F1035-12050 | BOLT | 1 | Enquire → |
| 4370 | F1805-10016 | BOLT,W/WASHER, B/W | 1 | Enquire → |
P375B-630-03GOVERNOR(CONTROL LEVER)31 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 4500 | F1115-08025 | BOLT,LOCKING WIRE HOLE | 1 | Enquire → |
| 4550 | F2515-08000 | WASHER,SPRING | 1 | Enquire → |
| 4600 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 4650 | 45R61-10800 | PLATE,SCALE | 1 | Enquire → |
| 4660 | 45R61-10900 | POINTER | 1 | Enquire → |
| 4720 | 37563-24601 | BRACKET,LEVER | 1 | Enquire → |
| 4800 | 34A87-07100 | GRIP | 1 | Enquire → |
| 4900 | 45940-30201 | PLATE,CAUTION | 1 | Enquire → |
| 5000 | F1805-08020 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 5100 | F2500-08000 | WASHER,PLAIN | 1 | Enquire → |
| 5220 | 37563-12601 | LEVER,GOVERNOR | 1 | Enquire → |
| 5900 | 35A61-38602 | JOINT,BALL | 2 | Enquire → |
| 5940 | 37563-01200 | JOINT,BALL | 2 | Enquire → |
| 5960 | F1035-08030 | BOLT | 2 | Enquire → |
| 5980 | F2500-08000 | WASHER,PLAIN | 2 | Enquire → |
| 6000 | F2300-08000 | NUT | 2 | Enquire → |
| 6100 | F2445-08000 | NUT,SELF-LOCKING | 3 | Enquire → |
| 6160 | F2300-08000 | NUT | 1 | Enquire → |
| 6170 | F2515-08000 | WASHER,SPRING | 1 | Enquire → |
| 6240 | 37563-16901 | LEVER,CANCEL | 1 | Enquire → |
| 6260 | 37563-34800 | LEVER,CANCEL | 1 | Enquire → |
| 6290 | 37761-37400 | SPRING,TORSION | 1 | Enquire → |
| 6320 | 32561-03600 | SPACER | 1 | Enquire → |
| 6340 | 32561-13500 | BOLT,LEVER | 1 | Enquire → |
| 6360 | 34A48-02202 | WASHER | 1 | Enquire → |
| 6450 | F8007-06201 | BEARING,BALL | 3 | Enquire → |
| 6550 | F3202-03200 | RING,SNAP | 2 | Enquire → |
| 6800 | 34A87-07200 | SEAL | 2 | Enquire → |
| 6900 | 35A61-19900 | WIRE,SEAL | 2 | Enquire → |
| 9801 | 37411-02300 | PLUG | 2 | Enquire → |
| 9802 | F5000-18000 | PLUG,DRAIN | 1 | Enquire → |
P375B-660-01STARTER(24V-7.5KW)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0500 | 37566-55200 | STARTER ASSY | 1 | Enquire → |
| 0800 | F1805-12035 | BOLT,W/WASHER, B/W | 3 | Enquire → |
P375B-660-02STARTER(ASSY)25 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0500 | 37566-55200 | STARTER ASSY | 1 | Enquire → |
| 0500001 | 37566-40211 | ARMATURE ASSY | 1 | Enquire → |
| 0500002 | 37566-40222 | BEARING,BALL | 1 | Enquire → |
| 0500003 | 10456-62007 | BEARING,BALL | 1 | Enquire → |
| 0500004 | 32666-20411 | YOKE ASSY | 1 | Enquire → |
| 0500005 | 37566-55212 | BRACKET ASSY,FRONT | 1 | Enquire → |
| 0500006 | 37566-55213 | METAL | 1 | Enquire → |
| 0500007 | 37566-40212 | LEVER,SHIFT | 1 | Enquire → |
| 0500008 | 37566-40213 | PIN,LEVER | 1 | Enquire → |
| 0500009 | 37566-00127 | CLUTCH ASSY | 1 | Enquire → |
| 0500010 | 37566-30118 | SHAFT ASSY | 1 | Enquire → |
| 0500011 | 37566-40223 | BEARING,BALL | 1 | Enquire → |
| 0500012 | 37566-00126 | STOPPER,PINION | 1 | Enquire → |
| 0500013 | 37566-00125 | CLIP,RING | 1 | Enquire → |
| 0500014 | 37566-10312 | BRACKET ASSY,CENTER | 1 | Enquire → |
| 0500015 | 37566-00222 | BRACKET,CENTER | 1 | Enquire → |
| 0500016 | 32666-20412 | BRACKET ASSY,REAR | 1 | Enquire → |
| 0500017 | 32666-20413 | HOLDER,BRUSH | 1 | Enquire → |
| 0500018 | 32666-20414 | SPRING,BRUSH | 4 | Enquire → |
| 0500019 | 37566-40217 | BRUSH | 4 | Enquire → |
| 0500020 | 32666-20415 | SWITCH ASSY | 1 | Enquire → |
| 0500021 | 32666-20416 | WIRE,LEAD | 1 | Enquire → |
| 0500022 | 32666-20417 | SWITCH ASSY | 1 | Enquire → |
| 0500023 | 32666-20418 | BOLT ASSY | 1 | Enquire → |
| 0500024 | 37766-40317 | SEAL ASSY | 1 | Enquire → |
P375B-680-01ALTERNATOR(24V-35A)16 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0110 | 04344-05101 | ALTERNATOR ASSY | 1 | Enquire → |
| 4000 | 37568-09501 | BRACKET,DYNAMO | 1 | Enquire → |
| 4100 | F1805-12030 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 4200 | F1035-14030 | BOLT | 1 | Enquire → |
| 4300 | F1035-14050 | BOLT | 1 | Enquire → |
| 4400 | F2500-14000 | WASHER,PLAIN | 2 | Enquire → |
| 4500 | F2515-14000 | WASHER,SPRING | 2 | Enquire → |
| 4600 | 37568-19200 | CONNECTOR | 1 | Enquire → |
| 4700 | 37568-09300 | CONNECTOR | 1 | Enquire → |
| 4800 | F1035-12060 | BOLT | 1 | Enquire → |
| 4900 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 5000 | F1805-10040 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 5100 | 37568-09600 | ROD,ADJUSTING | 1 | Enquire → |
| 5200 | F2320-14000 | NUT,JAM | 1 | Enquire → |
| 5250 | 09413-01401 | NUT,LOCK | 1 | Enquire → |
| 5300 | 37549-06520 | V-BELT,RAW EDGE, L=1355 | 1 | Enquire → |
P375B-680-02ALTERNATOR(ASSY)3 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0110 | 04344-05101 | ALTERNATOR ASSY | 1 | Enquire → |
| 0110003 | * | SINK ASSY,HEAT | 1 | Enquire → |
| 0110004 | * | SINK ASSY,HEAT | 1 | Enquire → |
P375B-680-03ALTERNATOR (HEAT SINK)3 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0111 | 04344-05111 | SINK SET,HEAT | 1 | Enquire → |
| 0112 | 04344-05112 | SINK ASSY,HEAT, (+) | 1 | Enquire → |
| 0113 | 04344-05113 | SINK ASSY,HEAT, (-) | 1 | Enquire → |
P375B-710TURNING GEAR6 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37571-10101 | GEAR,TURNING, Z=11 | 1 | Enquire → |
| 0200 | 05660-05030 | BUSHING | 1 | Enquire → |
| 0300 | 37571-20300 | FLANGE | 1 | Enquire → |
| 0400 | F1805-12020 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 0500 | F2500-12000 | WASHER,PLAIN | 2 | Enquire → |
| 0600 | 37571-01500 | PLATE,CAUTION | 1 | Enquire → |
P375B-875STOP CONTROL HANDLE36 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 04400-02200 | SOLENOID | 1 | Enquire → |
| 0101 | F1805-06020 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0420 | 37587-01500 | LEVER,STOP | 1 | Enquire → |
| 0510 | F1805-10040 | BOLT,W/WASHER, B/W | 1 | Enquire → |
| 0610 | 32561-28300 | PLATE,END | 1 | Enquire → |
| 0810 | F8007-06200 | BEARING,BALL | 2 | Enquire → |
| 0910 | F3202-03000 | RING,SNAP | 1 | Enquire → |
| 1000 | 37587-11201 | BRACKET,LEVER | 1 | Enquire → |
| 1015 | F1035-12080 | BOLT | 2 | Enquire → |
| 1210 | 37587-00900 | FOLLOWER | 1 | Enquire → |
| 1500 | 05902-06150 | ROD | 1 | Enquire → |
| 1700 | 09413-00600 | NUT,LOCK, L.H. THREAD | 1 | Enquire → |
| 1850 | F2320-06000 | NUT,JAM | 1 | Enquire → |
| 1913 | F2515-12000 | WASHER,SPRING | 6 | Enquire → |
| 1960 | F1035-12065 | BOLT | 4 | Enquire → |
| 2100 | 35A61-58302 | L-JOINT | 1 | Enquire → |
| 2160 | 05634-00610 | NUT,SELF-LOCKING | 2 | Enquire → |
| 3400 | 35A61-58402 | L-JOINT, L.H. THREAD | 1 | Enquire → |
| 3500 | F2515-06000 | WASHER,SPRING | 1 | Enquire → |
| 3700 | F2320-06000 | NUT,JAM | 1 | Enquire → |
| 3800 | 45931-04240 | CLEVIS | 1 | Enquire → |
| 3900 | 45681-36300 | PIN,CLEVIS | 1 | Enquire → |
| 4000 | F2841-16012 | PIN,SPLIT | 1 | Enquire → |
| 4100 | F2500-06000 | WASHER,PLAIN | 1 | Enquire → |
| 4200 | F1805-08016 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 4300 | F1805-10025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 4400 | 30687-33500 | JOINT,BALL | 1 | Enquire → |
| 4500 | 34A60-24010 | ACTUATOR ASSY,BOOCON | 1 | Enquire → |
| 4500001 | * | ACTUATOR | 1 | Enquire → |
| 4500002 | 34A87-06100 | STOPPER | 1 | Enquire → |
| 4500003 | 05633-30600 | NUT,FLANGE | 1 | Enquire → |
| 4600 | 37587-03900 | JOINT | 1 | Enquire → |
| 4700 | 37587-13601 | BRACKET,SOLENOID | 1 | Enquire → |
| 4800 | 37587-13701 | BRACKET,ACTUATOR | 1 | Enquire → |
| 4900 | 37587-03800 | HOSE,RUBBER | 1 | Enquire → |
| 5000 | 49301-39000 | CLIP,HOSE | 3 | Enquire → |
P375B-910TOOL30 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 32591-10010 | TOOL ASSY | 1 | Enquire → |
| 0200001 | MC420083 | BOX,TOOL | 1 | Enquire → |
| 0200002 | F9614-17000 | SOCKET, FOR M12 BOLT | 1 | Enquire → |
| 0200003 | F9614-22000 | SOCKET, FOR M14 BOLT | 1 | Enquire → |
| 0200004 | F9614-24000 | SOCKET, FOR M16 BOLT | 1 | Enquire → |
| 0200005 | F9614-27000 | SOCKET, FOR M18 BOLT | 1 | Enquire → |
| 0200006 | F9614-30000 | SOCKET, FOR M20 BOLT | 1 | Enquire → |
| 0200007 | F9614-32000 | SOCKET, FOR M22 BOLT | 1 | Enquire → |
| 0200008 | F9615-25000 | BAR,EXTENSION | 1 | Enquire → |
| 0200009 | F9617-10000 | JOINT,UNIVERSAL | 1 | Enquire → |
| 0200010 | F9618-30000 | HANDLE,SLIDE | 1 | Enquire → |
| 0200011 | F9600-07008 | SPANNER,OPEN ENDED, 07X08 | 1 | Enquire → |
| 0200012 | F9600-10012 | SPANNER,OPEN ENDED, 10X12 | 1 | Enquire → |
| 0200013 | F9600-14017 | SPANNER,OPEN ENDED, 14X17 | 1 | Enquire → |
| 0200014 | F9600-19022 | SPANNER,OPEN ENDED, 19X22 | 1 | Enquire → |
| 0200015 | F9600-24027 | SPANNER,OPEN ENDED, 24X27 | 1 | Enquire → |
| 0200016 | F9600-30032 | SPANNER,OPEN ENDED, 30X32 | 1 | Enquire → |
| 0200017 | F9600-36041 | SPANNER,OPEN ENDED, 36X41 | 1 | Enquire → |
| 0200018 | 91267-00201 | DRIVER,SCREW | 1 | Enquire → |
| 0200019 | F9630-15000 | PLIER | 1 | Enquire → |
| 0200020 | 05312-00201 | PUMP,GREASE | 1 | Enquire → |
| 0200021 | 05312-00700 | PUMP,GREASE | 1 | Enquire → |
| 0200022 | 05312-00800 | NOZZLE,GREASE PUMP | 1 | Enquire → |
| 0200023 | 30091-06501 | GAGE,THICKNESS | 1 | Enquire → |
| 0200024 | 33491-13600 | ADAPTER, FOR TORQUE WRENCH | 1 | Enquire → |
| 0200025 | 33491-23500 | SOCKET | 1 | Enquire → |
| 0300 | 33591-10101 | REMOVER | 1 | Enquire → |
| 1650 | 32591-22100 | WRENCH,FILTER | 1 | Enquire → |
| 1900 | 37191-03300 | HANDLE | 1 | Enquire → |
| 2200 | 42788-00400 | CAN,OIL | 1 | Enquire → |
P375B-930NAME PLATE13 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 00665-04048 | RIVET,SCREW | 4 | Enquire → |
| 0400 | 32593-00300 | PLATE,CAUTION, ENGINE VIEW | 1 | Enquire → |
| 0700 | 37593-21300 | PLATE,CAUTION, FIRING ORDER | 1 | Enquire → |
| 0790 | 37893-06900 | PLATE,DIESEL ENGINE | 1 | Enquire → |
| 0902 | * | PLATE,NAME, IMO2 | 1 | Enquire → |
| 1500 | 45A93-50600 | LABEL,CAUTION, HOT WATER | 1 | Enquire → |
| 1550 | 45A93-50900 | LABEL,CAUTION, HOT SURFACE | 1 | Enquire → |
| 1600 | 45A93-50800 | LABEL,CAUTION, ROTATING PARTS | 1 | Enquire → |
| 1650 | 45A93-51300 | LABEL,CAUTION, OIL MIST | 1 | Enquire → |
| 1700 | 45A93-51600 | LABEL,CAUTION, OPERATION MANUAL | 1 | Enquire → |
| 1800 | * | PLATE,LOGO, MHI | 1 | Enquire → |
| 2100 | 42789-00200 | LABEL,ANTICORROSIVE | 5 | Enquire → |
| 2110 | 42789-00800 | LABEL,ANTICORROSIVE | 2 | Enquire → |
P375B-940-01SPARE PARTS12 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0099 | 37594-09910 | METAL KIT,VELODUR | AR | Enquire → |
| 0150 | 37504-66200 | O-RING,ROCKER COVER | 2 | Enquire → |
| 0220 | 37549-06520 | V-BELT,RAW EDGE | 1 | Enquire → |
| 0230 | 37549-06600 | V-BELT,RAW EDGE | 1 | Enquire → |
| 0250 | 37560-17500 | TIP ASSY,NOZZLE | 3 | Enquire → |
| 0400 | 37561-16800 | GASKET,NOZZLE | 6 | Enquire → |
| 0450 | 32562-60300 | ELEMENT,FUEL FILTER | 2 | Enquire → |
| 0500 | 37540-11100 | ELEMENT,OIL FILTER | 2 | Enquire → |
| 0600 | 37540-02100 | CARTRIDGE,BY-PASS FILTER | 1 | Enquire → |
| 0650 | 34A40-02130 | ELEMENT ASSY,GOVERNOR OIL | 2 | Enquire → |
| 3000 | 47302-52190 | ELEMENT,WATER SEPARATOR | 1 | Enquire → |
| 3100 | 45B53-10201 | IMPELLER,SEA WATER PUMP | 1 | Enquire → |
3759443220-01COMMON USE (ENGINE BODY)38 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 37594-43220 | GASKET KIT,OVERHAUL, COMMON USE | 1 | Enquire → |
| 0100001 | 37501-12200 | GASKET,CYLINDER HEAD | 6 | Enquire → |
| 0100002 | 33504-10300 | SEAL,VAVLE STEM | 24 | Enquire → |
| 0100003 | 37504-41200 | PACKING,ROCKER CASE | 6 | Enquire → |
| 0100004 | 37504-66200 | O-RING,ROCKER COVER | 6 | Enquire → |
| 0100005 | 05507-10200 | O-RING | 6 | Enquire → |
| 0100006 | 37504-02300 | O-RING | 6 | Enquire → |
| 0100007 | 37107-04201 | O-RING,CYLINDER LINER | 6 | Enquire → |
| 0100008 | 37107-04300 | O-RING,CYLINDER LINER | 12 | Enquire → |
| 0100009 | 37507-32400 | O-RING,CYLINDER LINER | 6 | Enquire → |
| 0100013 | 05507-10340 | O-RING,WATER GALLERY | 3 | Enquire → |
| 0100014 | 05946-01201 | WASHER,SEALING, SIDE BOLT | 7 | Enquire → |
| 0100015 | 37507-16401 | O-RING,SIDE COVER | 6 | Enquire → |
| 0100016 | 37507-16501 | O-RING,CAM ROOM | 6 | Enquire → |
| 0100017 | 05507-20400 | O-RING | 1 | Enquire → |
| 0100018 | 37507-04900 | PACKING,CAM ROOM | 2 | Enquire → |
| 0100019 | 35B36-02900 | GASKET,OIL | 2 | Enquire → |
| 0100021 | 32525-23200 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0100022 | 37511-30200 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0100023 | 37511-13200 | PACKING | 1 | Enquire → |
| 0100024 | 37511-35200 | PACKING,REAR PLATE | 1 | Enquire → |
| 0100025 | 37511-30400 | PACKING,TIMING GEAR CASE | 1 | Enquire → |
| 0100026 | 05946-02401 | WASHER,SEALING | 1 | Enquire → |
| 0100027 | 05507-21250 | O-RING,PUMP COVER | 1 | Enquire → |
| 0100031 | 37213-10700 | PACKING,SIDE COVER | 2 | Enquire → |
| 0100032 | 37513-10200 | PACKING,OIL PAN | 1 | Enquire → |
| 0100033 | 05946-02001 | WASHER,SEALING | 3 | Enquire → |
| 0100034 | 05946-03601 | WASHER,SEALING | 2 | Enquire → |
| 0100035 | 05507-20600 | O-RING | 2 | Enquire → |
| 0100036 | 37525-40200 | PACKING,FRONT COVER | 1 | Enquire → |
| 0100037 | 05507-20900 | O-RING | 1 | Enquire → |
| 0100038 | 37525-03600 | O-RING,REAR DRIVE CASE | 1 | Enquire → |
| 0100039 | F3153-25000 | O-RING, NOT SHOWN | 1 | Enquire → |
| 0100040 | 30625-50502 | GASKET | 1 | Enquire → |
| 0100066 | 05946-01601 | WASHER,SEALING | 1 | Enquire → |
| 0100068 | 33442-20200 | PACKING | 1 | Enquire → |
| 0100110 | 37504-00900 | SEAL,EXHUAST VALVE STEM, DOUBLE SPRING TYPE | 12 | Enquire → |
| 0100111 | 37707-17200 | PACKING,SIDE COVER | 1 | Enquire → |
3759443220-02COMMON USE (AIR SYSTEM)14 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100041 | 35A30-00100 | O-RING,JOINT | 2 | Enquire → |
| 0100042 | 37530-00200 | PACKING,INLET PORT | 6 | Enquire → |
| 0100043 | 37530-11201 | PACKING,AIR DUCT | 1 | Enquire → |
| 0100046 | 37530-20500 | PACKING,AIR HEATER | 6 | Enquire → |
| 0100047 | 37532-09500 | GASKET,EXHAUST MANIFOLD | 6 | Enquire → |
| 0100048 | 41232-03900 | GASKET,SCREW PLUG | 3 | Enquire → |
| 0100049 | 32532-01700 | GASEKT,JOINT | 4 | Enquire → |
| 0100050 | 35A32-30100 | GASKET,TURBO, TD13 | 1 | Enquire → |
| 0100051 | 37533-03100 | GASEKT,TURBO, TD15 | 1 | Enquire → |
| 0100052 | 49162-51100 | O-RING | 1 | Enquire → |
| 0100053 | 49181-22600 | O-RING | 1 | Enquire → |
| 0100054 | 49181-22700 | O-RING | 1 | Enquire → |
| 0100094 | 37555-10300 | GASEKT,AIR COOLER | 2 | Enquire → |
| 0100112 | 36230-50800 | GASKET,AIR COOLER INLET | 1 | Enquire → |
3759443220-03COMMON USE (OIL SYSTEM)25 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100014 | 05946-01201 | WASHER,SEALING | 2 | Enquire → |
| 0100017 | 05507-20400 | O-RING | 3 | Enquire → |
| 0100019 | 35B36-02900 | GASKET,OIL | 1 | Enquire → |
| 0100055 | 37536-11100 | PACKING, OLD | 1 | Enquire → |
| 0100056 | 05507-20450 | O-RING | 2 | Enquire → |
| 0100057 | 05507-20500 | O-RING | 1 | Enquire → |
| 0100058 | 05507-20650 | O-RING, NEW | 1 | Enquire → |
| 0100059 | 05507-10180 | O-RING | 3 | Enquire → |
| 0100060 | 35C36-02900 | PACKING | 1 | Enquire → |
| 0100061 | 36236-10800 | PACKING, OLD | 1 | Enquire → |
| 0100062 | 37536-12700 | PACKING | 1 | Enquire → |
| 0100063 | 05507-10100 | O-RING, OLD | 2 | Enquire → |
| 0100064 | 05507-10110 | O-RING, OLD | 2 | Enquire → |
| 0100065 | 05946-01401 | WASHER,SEALING | 2 | Enquire → |
| 0100066 | 05946-01601 | WASHER,SEALING | 2 | Enquire → |
| 0100067 | 05507-20300 | O-RING, NEW | 1 | Enquire → |
| 0100068 | 33442-20200 | PACKING,OIL FILLER | 1 | Enquire → |
| 0100069 | 37539-10200 | PACKING,OIL COOLER | 1 | Enquire → |
| 0100070 | 37539-00400 | O-RING | 3 | Enquire → |
| 0100072 | MH035093 | O-RING | 2 | Enquire → |
| 0100073 | MH035626 | O-RING | 4 | Enquire → |
| 0100074 | MH035092 | O-RING | 8 | Enquire → |
| 0100075 | 05507-20750 | O-RING | 1 | Enquire → |
| 0100076 | 05507-10420 | O-RING | 1 | Enquire → |
| 0100077 | 05507-20600 | O-RING | 1 | Enquire → |
3759443220-04COMMON USE (COOLING SYSTEM)21 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100014 | 05946-01201 | WASHER,SEALING | 4 | Enquire → |
| 0100037 | 05507-20900 | O-RING | 1 | Enquire → |
| 0100066 | 05946-01601 | WASHER,SEALING | 1 | Enquire → |
| 0100076 | 05507-10420 | O-RING | 2 | Enquire → |
| 0100078 | 05507-10150 | O-RING | 1 | Enquire → |
| 0100079 | 05507-00160 | O-RING, UNNCESSARY | 3 | Enquire → |
| 0100080 | 05507-20250 | O-RING | 2 | Enquire → |
| 0100081 | F3153-09500 | O-RING | 1 | Enquire → |
| 0100082 | F3153-10000 | O-RING | 1 | Enquire → |
| 0100083 | F3153-17000 | O-RING | 1 | Enquire → |
| 0100086 | 32546-46800 | GASKET,SEA WATER | 4 | Enquire → |
| 0100087 | 37546-23300 | PACKING,COVER | 1 | Enquire → |
| 0100088 | 37546-19800 | PACKING,W/HEATER | 1 | Enquire → |
| 0100089 | F3153-06000 | O-RING | 3 | Enquire → |
| 0100090 | 05505-31065 | O-RING | 12 | Enquire → |
| 0100091 | 05505-57060 | O-RING, NEW | 1 | Enquire → |
| 0100092 | 37548-30200 | PACKING | 1 | Enquire → |
| 0100093 | 37555-10600 | GASKET | 2 | Enquire → |
| 0100094 | 37555-10300 | GASEKT,AIR COOLER | 1 | Enquire → |
| 0100095 | 05507-10460 | O-RING | 8 | Enquire → |
| 0100113 | 05507-10500 | O-RING | 1 | Enquire → |
3759443220-05COMMON USE (FUEL SYSTEM)13 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100013 | 05507-10340 | O-RING | 6 | Enquire → |
| 0100014 | 05946-01201 | WASHER,SEALING | 13 | Enquire → |
| 0100018 | 37507-04900 | PACKING,CAM ROOM | 2 | Enquire → |
| 0100065 | 05946-01401 | WASHER,SEALING | 19 | Enquire → |
| 0100071 | 05507-10140 | O-RING | 1 | Enquire → |
| 0100076 | 05507-10420 | O-RING | 6 | Enquire → |
| 0100096 | 37561-16800 | GASKET,NOZZLE | 6 | Enquire → |
| 0100097 | 05946-00801 | WASHER,SEALING | 15 | Enquire → |
| 0100100 | 05507-10260 | O--RING | 6 | Enquire → |
| 0100101 | 05946-01001 | WASHER,SEALING | 29 | Enquire → |
| 0100102 | 37463-31900 | PACKING | 1 | Enquire → |
| 0100103 | 41063-02201 | GASKET, NOT SHOWN | 1 | Enquire → |
| 0100104 | 05507-21450 | O-RING | 1 | Enquire → |
3759443220-06COMMON USE (OTHER DEVISE)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100098 | F4202-14000 | GASKET | 12 | Enquire → |
| 0100107 | 05507-21100 | O-RING | 2 | Enquire → |
3759458131-01MARINE ADDITIONAL PARTS (ENGINE BODY)4 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300 | 37594-58131 | GASKET KIT,OVERHAUL, MARINE ADD. PARTS | 1 | Enquire → |
| 0300003 | 05946-03001 | WASHER,SEALING, NOT SHOWN | 1 | Enquire → |
| 0300017 | 37513-28400 | PACKING, NOT SHOWN | 2 | Enquire → |
| 0300023 | 37555-10600 | PACKING,AIR COOLER | 1 | Enquire → |
3759458131-02MARINE ADDITIONAL PARTS (AIR SYSTEM)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300045 | 41232-03900 | GASKET,EXHAUST MANIFOLD | 6 | Enquire → |
| 0300056 | 05946-02401 | WASHER,SEALING, OLD | 1 | Enquire → |
3759458131-03MARINE ADDITIONAL PARTS (OIL SYSTEM)18 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300001 | 04826-28040 | PACKING | 1 | Enquire → |
| 0300004 | 04826-28050 | PACKING,BREATHER PIPE | 2 | Enquire → |
| 0300005 | 35B36-02900 | GASKET,EMERGENCY OIL | 2 | Enquire → |
| 0300012 | 33336-20500 | PACKING | 1 | Enquire → |
| 0300015 | 36240-15700 | GASKET, NOT SHOWN | 1 | Enquire → |
| 0300016 | 36240-15600 | GASKET,COVER | 1 | Enquire → |
| 0300028 | 42784-02400 | PACKING,WING PUMP | 2 | Enquire → |
| 0300034 | F3150-01600 | O-RING,COVER | 2 | Enquire → |
| 0300035 | F3150-04200 | O-RING,BREATHER ELEMENT | 1 | Enquire → |
| 0300037 | F3156-02500 | O-RING,MARINE GEAR DRAIN | 1 | Enquire → |
| 0300038 | F3153-03000 | O-RING,TURBO DRAIN PIPE, NOT SHOWN | 1 | Enquire → |
| 0300048 | F4202-24000 | GASKET,OIL FILTER ALARM | 1 | Enquire → |
| 0300049 | F3156-04000 | O-RING,OIL COOLER COVER | 3 | Enquire → |
| 0300050 | F3156-04500 | O-RING,EMERGENCY OIL | 3 | Enquire → |
| 0300051 | F3156-05000 | O-RING,EMERGENCY OIL | 2 | Enquire → |
| 0300052 | F3156-07500 | O-RING,OIL COOLER COVER | 1 | Enquire → |
| 0300053 | 05507-00180 | O-RING,OIL COOLER COVER | 1 | Enquire → |
| 0300056 | 05946-02401 | WASHER,SEALING | 1 | Enquire → |
3759458131-04MARINE ADDITIONAL PARTS (COOLING SYSTEM)36 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300002 | 04826-28065 | PACKING,WATER INLET PIPE | 1 | Enquire → |
| 0300006 | 32546-46800 | GASKET,HEAT EXCHANGER | 1 | Enquire → |
| 0300007 | 32546-16700 | PACKING | 2 | Enquire → |
| 0300008 | 32546-17700 | PACKING,HEAT EXCHANGER | 2 | Enquire → |
| 0300009 | 32546-17900 | PACKING | 4 | Enquire → |
| 0300010 | 32546-19800 | PACKING,HEAT EXCHANGER | 2 | Enquire → |
| 0300011 | 32546-20300 | PACKING,WATER PIPE | 2 | Enquire → |
| 0300013 | 33652-10500 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0300014 | 33652-10600 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0300018 | 37555-18113 | GASKET | 1 | Enquire → |
| 0300019 | 05507-10600 | O-RING,AIR COOLER | 4 | Enquire → |
| 0300020 | 05507-20900 | O-RING,AIR COOLER | 2 | Enquire → |
| 0300021 | 37555-28500 | GASKET,AIR COOLER | 2 | Enquire → |
| 0300022 | 37555-23400 | GASKET,AIR COOLER | 2 | Enquire → |
| 0300024 | 42702-01100 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0300025 | 45151-83701 | PACKING | 2 | Enquire → |
| 0300027 | 42783-07501 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0300030 | 42783-00117 | GASKET,SEA WATER PUMP | 1 | Enquire → |
| 0300031 | 42783-00131 | GASKET,SEA WATER PUMP | 1 | Enquire → |
| 0300032 | F3153-12500 | O-RING,SEA WATER PUMP | 1 | Enquire → |
| 0300033 | 42783-00143 | O-RING,SEA WATER PUMP | 1 | Enquire → |
| 0300036 | F3153-08000 | O-RING,HEAT EXCHANGER | 4 | Enquire → |
| 0300039 | F3153-09000 | O-RING,AIR COOLER | 1 | Enquire → |
| 0300040 | F3153-10000 | O-RING,WATER INLET PIPE | 1 | Enquire → |
| 0300041 | F3153-20000 | O-RING,HEAT EXCHANGER | 1 | Enquire → |
| 0300042 | F3153-07000 | O-RING,SEA WATER PIPING | 3 | Enquire → |
| 0300043 | F3153-08500 | O-RING, NOT SHOWN | 1 | Enquire → |
| 0300044 | F3153-19000 | O-RING, NOT SHOWN | 1 | Enquire → |
| 0300046 | F4202-10000 | GASKET,BOOCON PIPE | 1 | Enquire → |
| 0300054 | 05946-01601 | WASHER,SEALING | 3 | Enquire → |
| 0300055 | 05946-02001 | WASHER,SEALING | 4 | Enquire → |
| 0300057 | 45352-74801 | PACKING,THERMO CASE | 1 | Enquire → |
| 0300058 | 45352-74901 | PACKING,HEAT EXCHANGER | 2 | Enquire → |
| 0300059 | 45352-74601 | PACKING,SQUARE | 3 | Enquire → |
| 0300060 | 45352-74701 | PACKING,ZINC ASSY | 5 | Enquire → |
| 0300061 | 45352-76400 | PACKING,WATER OUTLET PIPE | 1 | Enquire → |
3759458131-06MARINE ADDITIONAL PARTS (OTHER DEVISE)5 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0300026 | 42796-01300 | GASKET,EXHAUST JOINT | 2 | Enquire → |
| 0300028 | 42784-02400 | PACKING,WING PUMP | 2 | Enquire → |
| 0300029 | 42785-04600 | PACKING, NOT SHOWN | 1 | Enquire → |
| 0300046 | F4202-10000 | GASKET,BOOCON PIPE | 1 | Enquire → |
| 0300047 | F4202-12000 | GASKET,BOOCON SENSOR | 1 | Enquire → |
P45R1-461WATER INLET & OUTLET PIPING6 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0010 | 32646-20214 | FLANGE | 1 | Enquire → |
| 0015 | 32546-16700 | PACKING | 1 | Enquire → |
| 0020 | F1805-10035 | BOLT,W/WASHER, B/W | 4 | Enquire → |
| 0025 | 37545-12100 | FLANGE | 1 | Enquire → |
| 0030 | F3153-10000 | O-RING | 1 | Enquire → |
| 0035 | F1805-12025 | BOLT,W/WASHER, B/W | 3 | Enquire → |
P45R3-370WING PUMP36 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 42784-00101 | PUMP,WING | 1 | Enquire → |
| 0250 | 37536-08503 | BRACKET | 1 | Enquire → |
| 0500 | 37536-08600 | BRACKET | 1 | Enquire → |
| 0600 | F1035-10045 | BOLT | 1 | Enquire → |
| 0700 | F1035-10050 | BOLT | 1 | Enquire → |
| 0800 | F2300-10000 | NUT | 2 | Enquire → |
| 0900 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 1000 | 42790-04920 | PIPE,OIL | 2 | Enquire → |
| 1100 | 42784-02400 | PACKING | 2 | Enquire → |
| 1200 | 42784-01700 | COCK,THREE WAY | 2 | Enquire → |
| 1300 | 37536-48700 | PIPE,OIL DRAIN | 1 | Enquire → |
| 1350 | 05507-20600 | O-RING | 1 | Enquire → |
| 1450 | 35A46-09400 | CLAMP | 1 | Enquire → |
| 1460 | 45R37-11700 | TAPE,RUBBER | 1 | Enquire → |
| 1500 | 37536-38900 | PIPE,OIL PRIMING | 1 | Enquire → |
| 1510 | 30668-52600 | SPACER | 1 | Enquire → |
| 1520 | F1805-12025 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1600 | 37536-16300 | PIPE,OIL | 1 | Enquire → |
| 1700 | 37536-09100 | PIPE,DRAIN | 1 | Enquire → |
| 1800 | 37536-06400 | VALVE,CHECK | 1 | Enquire → |
| 1900 | F4540-18000 | CONNECTOR | 1 | Enquire → |
| 1950 | F5006-26000 | PLUG,TAPERED | 1 | Enquire → |
| 2000 | F4560-18000 | ELBOW | 3 | Enquire → |
| 2200 | F1035-12045 | BOLT | 2 | Enquire → |
| 2210 | F2515-12000 | WASHER,SPING | 2 | Enquire → |
| 2250 | F2500-10000 | WASHER,PLAIN | 2 | Enquire → |
| 2600 | 32597-08600 | CLIP | 6 | Enquire → |
| 2700 | 45R37-11700 | TAPE,RUBBER | 6 | Enquire → |
| 2800 | F1035-12025 | BOLT | 1 | Enquire → |
| 2900 | F2515-12000 | WASHER,SPRING | 1 | Enquire → |
| 5000 | 45R37-13700 | STAY,OIL PIPE | 2 | Enquire → |
| 5010 | F1035-12040 | BOLT | 2 | Enquire → |
| 5020 | F2515-12000 | WASHER,SPRING | 2 | Enquire → |
| 5030 | F2300-12000 | NUT | 2 | Enquire → |
| 5040 | F1805-12045 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 5050 | 65817-00800 | COLLAR | 2 | Enquire → |
P45R3-510SEA WATER COOLING (REVERS GEAR SIDE)4 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 2700 | 45R51-12830 | PIPE,SEA WATER | 1 | Enquire → |
| 3300 | 45151-83701 | PACKING | 1 | Enquire → |
| 3400 | F2005-12035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 3500 | F2500-12000 | WASHER,PLAIN | 2 | Enquire → |
P45R3-613LEAK OFF PIPE(FLEXIBLE PIPE)1 part
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0200 | 45950-51900 | PIPE,FLEXIBLE | 1 | Enquire → |
P45R3-621FUEL FILTER PIPING (FLEXIBLE PIPE)2 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0150 | 45950-51500 | PIPE,FLEXIBLE | 1 | Enquire → |
| 0200 | 00428-15031 | CONNECTOR | 1 | Enquire → |
P45R3-870SPEED CONTROL(THROTTLE CABLE)26 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 45R87-10100 | LEVER,GOVERNOR | 1 | Enquire → |
| 0200 | 45R87-11401 | BRACKET,CONTROL | 1 | Enquire → |
| 0210 | 37561-18501 | BOLT | 1 | Enquire → |
| 0220 | 35A61-19900 | WIRE,SEAL | 1 | Enquire → |
| 0230 | 34A87-07200 | SEAL | 1 | Enquire → |
| 0240 | 37560-04800 | NUT,LOCK | 1 | Enquire → |
| 0300 | 45R87-10302 | BRACKET,CABLE | 1 | Enquire → |
| 0350 | 45R87-12100 | BRACKET | 1 | Enquire → |
| 0400 | 45288-71805 | CABLE | 1 | Enquire → |
| 0500 | 05317-40800 | CLIP | 1 | Enquire → |
| 0700 | 45R87-11301 | BRACKET | 1 | Enquire → |
| 0800 | 45940-34300 | PLATE,CAUTION | 1 | Enquire → |
| 0950 | F1805-06020 | BOLTW/,WASHER, B/W | 2 | Enquire → |
| 1000 | 42786-02400 | SHIM | 1 | Enquire → |
| 1100 | 42786-02300 | BRACKET | 1 | Enquire → |
| 1200 | F1600-05012 | SCREW,MACHINE | 2 | Enquire → |
| 1300 | F2515-05000 | WASHER,SPRING | 2 | Enquire → |
| 1400 | 45288-74101 | JOINT,BALL | 1 | Enquire → |
| 1500 | 06471-20600 | JOINT,BALL | 1 | Enquire → |
| 1700 | F1035-08025 | BOLT | 1 | Enquire → |
| 1800 | F2515-08000 | WASHER,SPRING | 1 | Enquire → |
| 1900 | F2320-05000 | NUT,JAM | 2 | Enquire → |
| 2000 | F2300-06000 | NUT | 1 | Enquire → |
| 2100 | 45500-42500 | CUSHION,RUBBER | 2 | Enquire → |
| 2200 | F2300-08000 | NUT | 2 | Enquire → |
| 2300 | F2515-08000 | WASHER,SPRING | 2 | Enquire → |
P45R3-900-01INSTRUMENT55 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0120 | 45689-50401 | CONNECTOR | 1 | Enquire → |
| 1060 | 04442-34410 | SWITCH,THERMO, ON 95℃ | 1 | Enquire → |
| 1061 | 04442-38910 | SWITCH,THERMO | 1 | Enquire → |
| 1062 | 45600-42902 | CONNECTOR | 1 | Enquire → |
| 1063 | 05946-01601 | WASHER SEALING | 1 | Enquire → |
| 1090 | 45600-42902 | CONNECTOR | 1 | Enquire → |
| 1100 | 04442-45400 | SWITCH,PRESSURE, 0.15MPA | 1 | Enquire → |
| 1101 | 04442-45510 | SWITCH,PRESSURE, 0.20MPA | 1 | Enquire → |
| 1140 | 04827-02100 | BUSHING | 1 | Enquire → |
| 1172 | 04541-90410 | TRANSMITTER,PRESSURE | 1 | Enquire → |
| 1195 | 04525-17200 | SENSOR,THERMO | 1 | Enquire → |
| 1201 | 45689-50401 | CONNECTOR | 2 | Enquire → |
| 1210 | F5006-10000 | PLUG,TAPERED | 2 | Enquire → |
| 1270 | F1035-06020 | BOLT | 3 | Enquire → |
| 1280 | F2300-06000 | NUT | 3 | Enquire → |
| 1290 | F2515-06000 | WASHER,SPRING | 3 | Enquire → |
| 1300 | 42772-04200 | DAMPER | 1 | Enquire → |
| 1310 | 45951-04040 | PIPE,FLEXIBLE | 1 | Enquire → |
| 1320 | F4560-06300 | ELBOW | 1 | Enquire → |
| 1330 | 42702-52201 | BRACKET | 1 | Enquire → |
| 1340 | F1805-12035 | BOLT,W/WASHER, B/W | 2 | Enquire → |
| 1350 | 45644-47900 | MOUNT,OIL PRESSURE UNIT | 1 | Enquire → |
| 1360 | F1035-10025 | BOLT | 2 | Enquire → |
| 1370 | F2300-10000 | NUT | 2 | Enquire → |
| 1380 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 1410 | 05317-41500 | CLIP, D=15 | 10 | Enquire → |
| 1420 | 05317-42000 | CLIP, D=20 | 12 | Enquire → |
| 1430 | 05317-42500 | CLIP, D=25 | 8 | Enquire → |
| 1440 | 05317-43000 | CLIP, D=30 | 5 | Enquire → |
| 1450 | 05318-00300 | BAND,CLIP, 1.5-45 | 20 | Enquire → |
| 1460 | 05318-00200 | BAND,CLIP, 1.5-32 | 20 | Enquire → |
| 1470 | 45644-47900 | MOUNT,OIL PRESSURE UNIT | 1 | Enquire → |
| 1480 | F1035-10025 | BOLT | 2 | Enquire → |
| 1490 | F2300-10000 | NUT | 2 | Enquire → |
| 1500 | F2515-10000 | WASHER,SPRING | 2 | Enquire → |
| 1510 | 42702-51400 | PIPE,AIR | 1 | Enquire → |
| 1520 | 37136-23601 | BOLT,EYE | 1 | Enquire → |
| 1530 | F4202-10000 | GASKET | 3 | Enquire → |
| 1542 | 04541-90210 | TRANSMITTER,PRESSURE | 1 | Enquire → |
| 1555 | 04382-70600 | RELAY,EMERGENCY | 1 | Enquire → |
| 1570 | F2300-06000 | NUT | 8 | Enquire → |
| 1580 | F2500-06000 | WASHER,PLAIN | 8 | Enquire → |
| 1590 | F2515-06000 | WASHER,SPRING | 8 | Enquire → |
| 1651 | 44N48-58450 | HARNESS,MAIN | 1 | Enquire → |
| 1730 | 04522-34100 | THERMOMETER | 1 | Enquire → |
| 1770 | 04410-43420 | PICKUP,MAGNETIC | 1 | Enquire → |
| 1780 | 04410-14200 | PICKUP,MAGNETIC | 1 | Enquire → |
| 1796 | 44N45-69210 | PANEL ASSY,TRIP | 1 | Enquire → |
| 1800 | 45R90-26600 | HARNESS,TRIP PANEL | 1 | Enquire → |
| 1810 | 45R78-41500 | HARNESS,TRIP PANEL | 1 | Enquire → |
| 2010 | 44N45-64120 | PANEL,GAUGE | 1 | Enquire → |
| 2020 | 44N45-64420 | PANEL,GAUGE | 1 | Enquire → |
| 2030 | 44N48-54200 | HARNESS,PANEL | 1 | Enquire → |
| 2040 | 44N48-54115 | HARNESS,PANEL | 1 | Enquire → |
| 2050 | 45B90-23210 | HARNESS,EMERGENCY | 1 | Enquire → |
P45R3-900-02INSTRUMENT(ECO CRUISE MONITOR)15 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0005 | 44N47-51100 | MONITOR UNIT,ECO CRUISE | 1 | Enquire → |
| 0010 | 44N47-51200 | SENSOR UNIT,ECO CRUISE | 1 | Enquire → |
| 0020 | 44N47-51400 | PICKUP,MAGNETIC | 1 | Enquire → |
| 0030 | 04525-17200 | SENSOR,THERMO | 1 | Enquire → |
| 0040 | 04541-90410 | TRANSMITTER,PRESSURE | 1 | Enquire → |
| 0050 | 04541-90210 | TRANSMITTER,PRESSURE | 1 | Enquire → |
| 0060 | 04526-62250 | THERMOCOUPLE | 1 | Enquire → |
| 0070 | 44N47-51310 | HARNESS,RB | 1 | Enquire → |
| 0080 | 44N47-51320 | HARNESS,TM | 1 | Enquire → |
| 0090 | 44N47-51330 | HARNESS,TM | 1 | Enquire → |
| 0100 | 44N47-51340 | HARNESS,MPU | 1 | Enquire → |
| 0110 | 04827-02100 | BUSHING | 1 | Enquire → |
| 0120 | 45689-50401 | CONNECTOR | 1 | Enquire → |
| 0130 | 04827-81000 | PLUG,TAPERED | 1 | Enquire → |
| 0150 | 44N47-51900 | UNIT,POWER DELAY | 1 | Enquire → |
P45R3-925-01ACCESSORY10 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 0100 | 42706-02100 | JOINT,EXPANSION, EXHAUST | 1 | Enquire → |
| 0200 | 04826-00200 | FLANGE | 1 | Enquire → |
| 0300 | 42796-01300 | PACKING | 2 | Enquire → |
| 0400 | F1155-20065 | BOLT | 16 | Enquire → |
| 0500 | 42790-03882 | NUT | 16 | Enquire → |
| 0600 | 42790-03622 | WASHER,SPRING | 16 | Enquire → |
| 1300 | 42784-00101 | PUMP,WING | 1 | Enquire → |
| 1400 | 42790-02413 | FLANGE | 2 | Enquire → |
| 1500 | 42784-02400 | PACKING | 2 | Enquire → |
| 1900 | 04380-53001 | SWITCH,BATTERY | 1 | Enquire → |
P45R3-925-02ACCESSORY(WATER SEPARATOR)10 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 3030 | 47302-52100 | SEPARATOR ASSY,WATER | 1 | Enquire → |
| 3030001 | 47302-52190 | ELEMENT,FUEL OIL | 1 | Enquire → |
| 3030002 | 47302-52111 | GASKET | 1 | Enquire → |
| 3030003 | 47302-52112 | GASKET | 3 | Enquire → |
| 3030004 | 47302-52113 | BALL ASSY | 1 | Enquire → |
| 3030005 | 47302-52114 | COVER | 1 | Enquire → |
| 3030006 | 47302-52115 | HANDLE | 1 | Enquire → |
| 3030007 | 47302-52116 | O-RING | 1 | Enquire → |
| 3030008 | 47302-52117 | COCK,DRAIN | 1 | Enquire → |
| 3030009 | 47302-52118 | STICKER | 1 | Enquire → |
P45R3-925-03ACCESSORY(SEA WATER FILTER)19 parts
| Ref | Part No. | Name | Qty | |
|---|---|---|---|---|
| 3040 | 42786-15700 | FILTER ASSY,SEA WATER | 1 | Enquire → |
| 3040001 | 42786-15112 | BODY | 1 | Enquire → |
| 3040002 | 42786-15113 | COVER | 1 | Enquire → |
| 3040003 | 42786-15114 | CYLINDER | 1 | Enquire → |
| 3040004 | 42786-15115 | STUD,CENTER | 1 | Enquire → |
| 3040005 | 42786-15116 | O-RING | 2 | Enquire → |
| 3040006 | 42786-15117 | O-RING | 1 | Enquire → |
| 3040007 | 42786-15118 | NUT,CAP | 1 | Enquire → |
| 3040008 | 42786-15119 | SCREEN | 1 | Enquire → |
| 3040009 | 42786-15120 | PLUG | 1 | Enquire → |
| 3040010 | 42786-15121 | O-RING | 1 | Enquire → |
| 3040011 | 42786-15122 | PROTECTOR,ZINC | 1 | Enquire → |
| 3040012 | 42786-15123 | PLUG | 1 | Enquire → |
| 3040013 | 42786-15124 | O-RING | 1 | Enquire → |
| 3040014 | 42786-15125 | PACKING | 2 | Enquire → |
| 3040015 | 42786-15711 | FLANGE | 2 | Enquire → |
| 3040016 | 42786-15126 | BOLT | 8 | Enquire → |
| 3060 | 42791-31080 | HOSE,RUBBER, SEA WATER IN & OUT | 2 | Enquire → |
| 3070 | 05317-80480 | CLAMP | 8 | Enquire → |
Part numbers, availability and pricing are subject to change without notice — confirm the exact part number with OPS before ordering. Rows shaded like this are printed as * in MHI's catalogue: shown for reference but not available as an individual spare part.
Pair the S6R2 with Smart Cruising Assist for real-time engine monitoring, fuel tracking and maintenance alerts.
Figures on this page are indicative and subject to change without notice — confirm the exact rating and configuration with OPS before specifying.
Ready to spec the S6R2?
Send your application details and we'll confirm the right variant and rating for your vessel.
